Maclean PIR Motion Sensor, flush-mounted, detection range 10x40m, 1000W/2000W, 220-240V AC, 50/60Hz, IP54, MCE822

MACLEAN MCE822 PIR PRESENCE SENSOR – AUTOMATIC LIGHTING CONTROL
The Maclean MCE822 is a practical flush-mount PIR presence sensor, designed for automatic lighting control in homes, offices, garages, hallways, stairwells, and utility rooms. The device detects motion and the presence of people, then turns on the connected lights without the need for a traditional light switch. This allows the light to turn on exactly when it’s needed, which increases user comfort and helps reduce energy consumption.

WIDE 360° DETECTION ANGLE AND ADJUSTABLE ILLUMINATION TIME
The Maclean MCE822 presence sensor provides a full, 360-degree detection angle, allowing it to effectively monitor the area around its mounting location. This solution works particularly well in hallways, passageways, and areas where traffic may come from various directions. The light on-time can be adjusted from 10 seconds to 15 minutes to tailor the sensor’s operation to a specific application. A shorter setting would be appropriate, for example, in a hallway, while a longer duration would be suitable for a garage, basement, or utility room.

- Manufacturer: Maclean
- Model: MCE822
- Color: white
- Voltage: 220-240V AC
- Mains frequency: 50/60Hz
- Detection technology: PIR
- Time delay: min. 10 sec ± 3 sec / max. 15 min ± 2 min
- Rated load: max. 2000 W (resistive load) / 1000 W (inductive load)

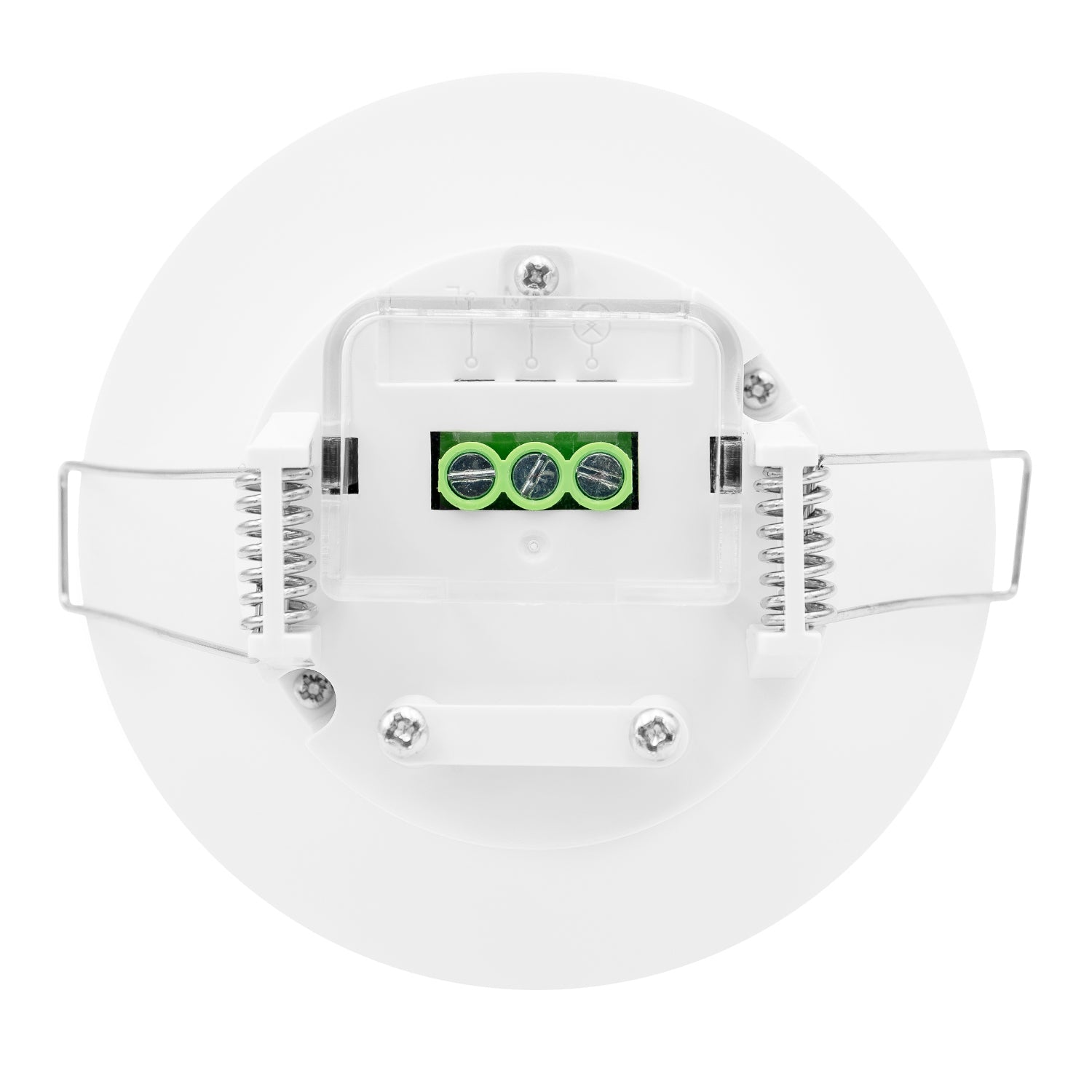

- Mounting method: flush-mounted
- Mounting height: 2.2–4 m
- Detection range: 360°
- Detection range: 40 m max (<24°C )
- Ambient illumination: <3–2000 lux (adjustable)
- Operating temperature: -20 ~ +40°C
- Operating humidity: <93% RH
- Motion speed detection: 0.6–1.5 m/s
- Protection class against electric shock: I

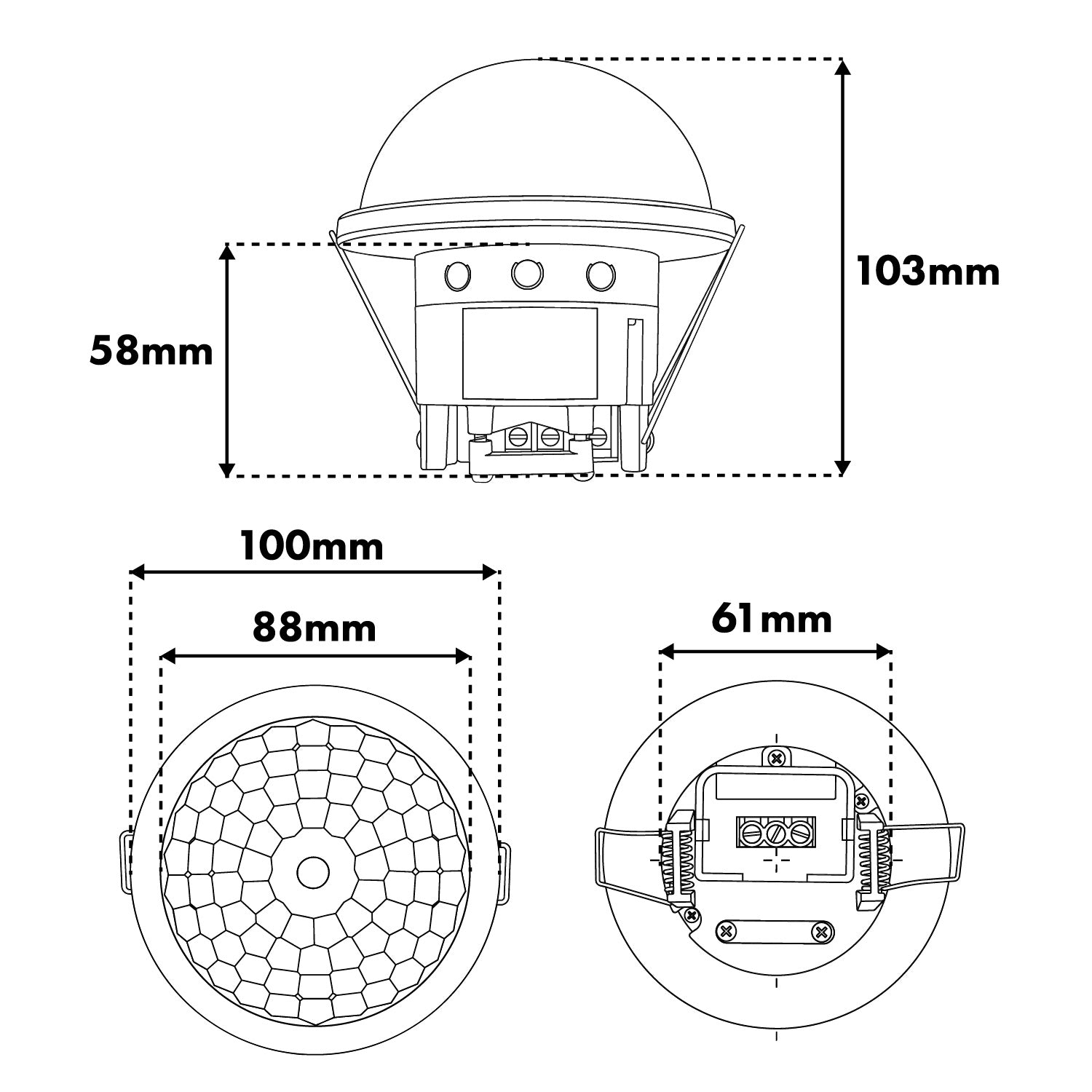

- Overall height: 103 mm
- Overall diameter: 100 mm
- Sensor diameter: 88 mm
- IP rating: IP54

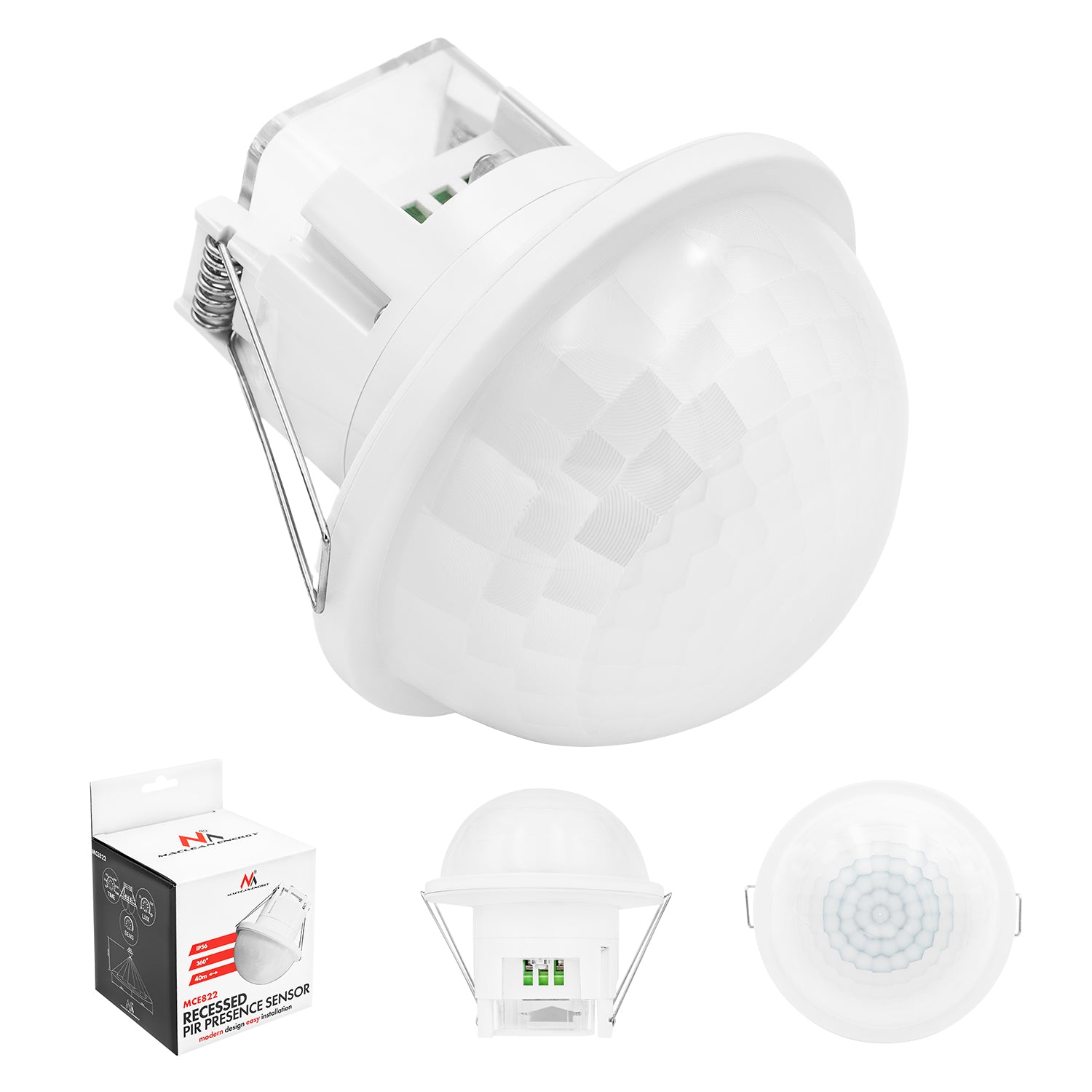

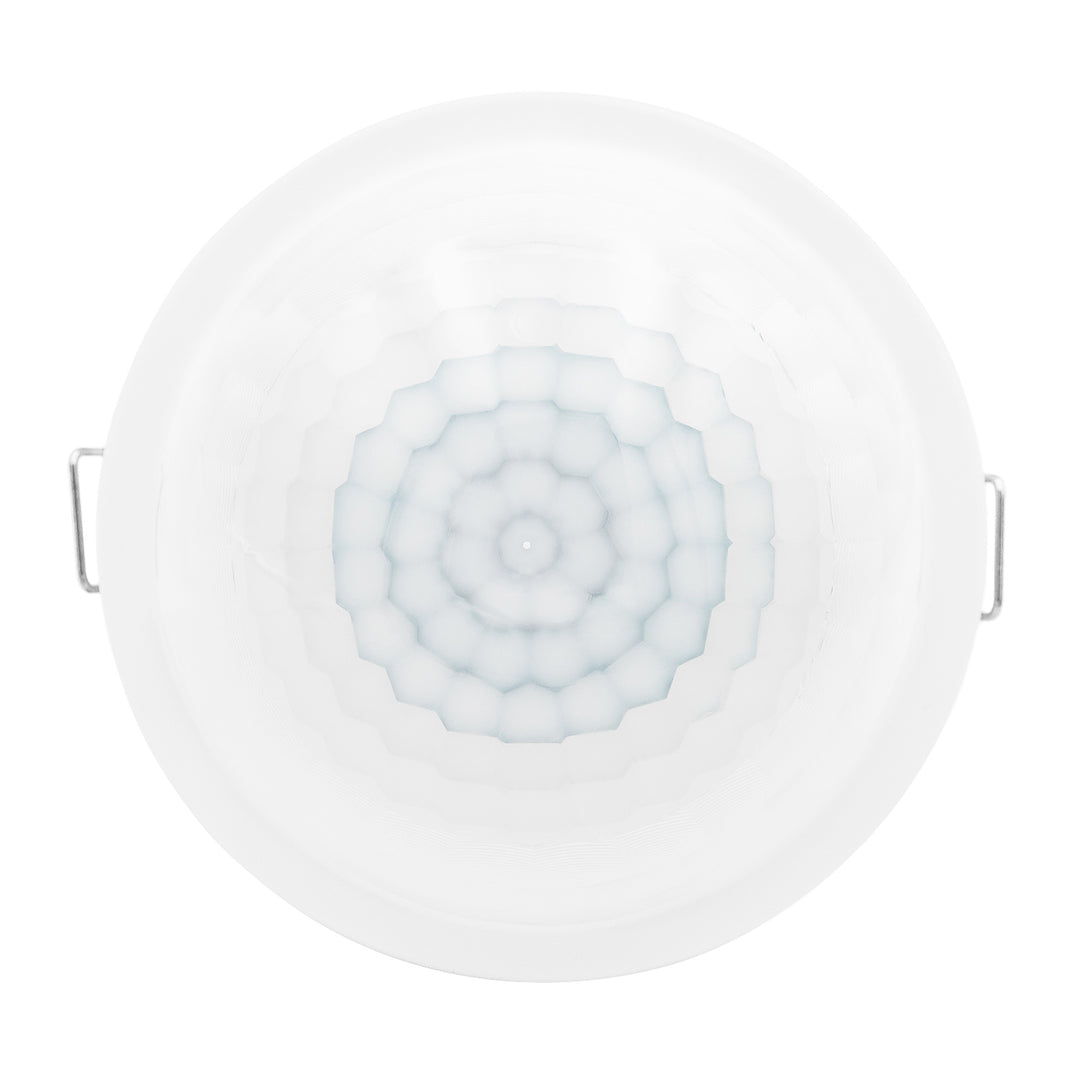

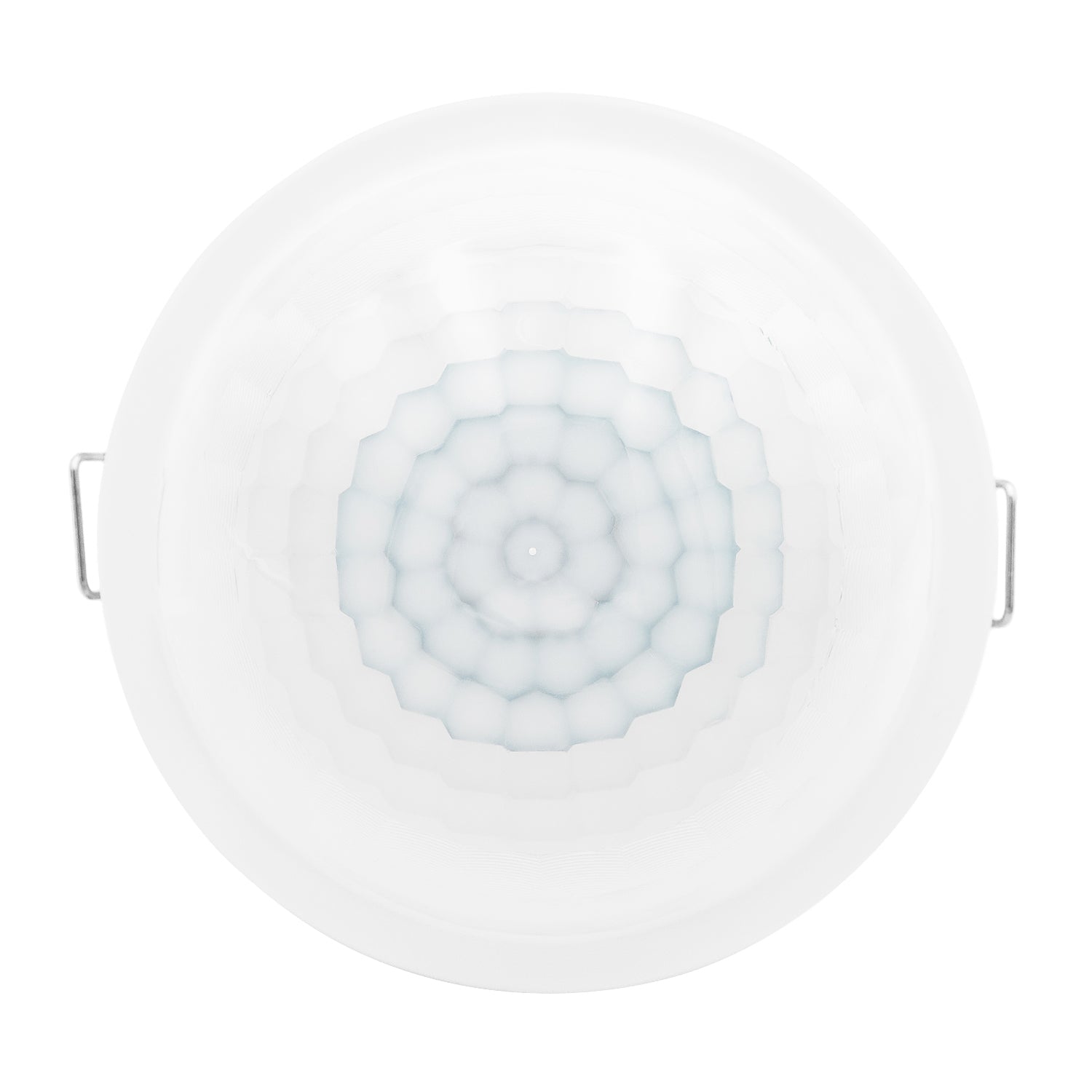

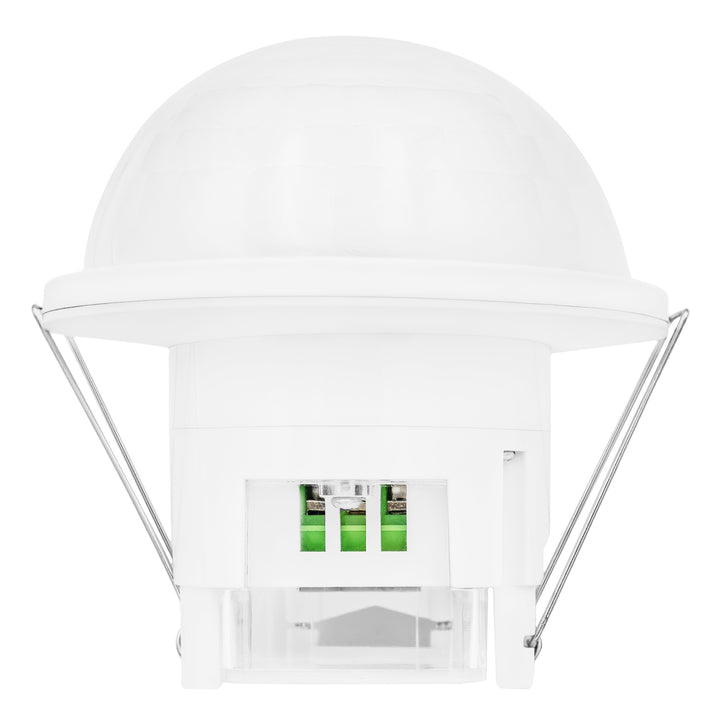

- Maclean MCE822 PIR Motion Sensor
- User Manual
- Manufacturer's Packaging

TWILIGHT SENSOR AND IP54 PROTECTION
The built-in, adjustable twilight sensor allows you to set the light level at which the Maclean MCE822 should activate the lighting. This ensures the device operates only after dark, minimizing unnecessary lighting during the day. The IP54-rated housing provides enhanced resistance to dust and water splashes, so the sensor can also be used in areas exposed to dust and occasional moisture, provided it is installed correctly. The Maclean MCE822 is a practical solution for those seeking a convenient and energy-efficient PIR motion sensor for lighting automation.

- Wide 360° detection angle – effectively monitors the area around the sensor and quickly detects motion regardless of the direction from which a user approaches
- Presence detection – reacts to motion and the presence of people in the room
- Adjustable sensitivity – allows you to tailor the device’s response to the room’s characteristics and reduce the risk of accidental lighting activation
- Adjustable lighting hold time – smoothly adjust the duration from 10 seconds to 15 minutes
- Adjustable twilight sensor – set the light intensity level at which the sensor activates, ensuring the lights do not turn on during the day
- Automatic lighting control—the light turns on only when motion is detected and lighting conditions are appropriate
- Comfort and energy savings – automated lighting reduces the need to use light switches and helps lower electricity consumption
- Versatile application – suitable for hallways, stairwells, closets, garages, basements, utility rooms, offices, and other functional spaces
- IP54 protection rating – the housing provides protection against limited dust ingress and water splashes from various directions
- Discreet design – once installed, the device remains largely invisible and blends well with modern interior design
