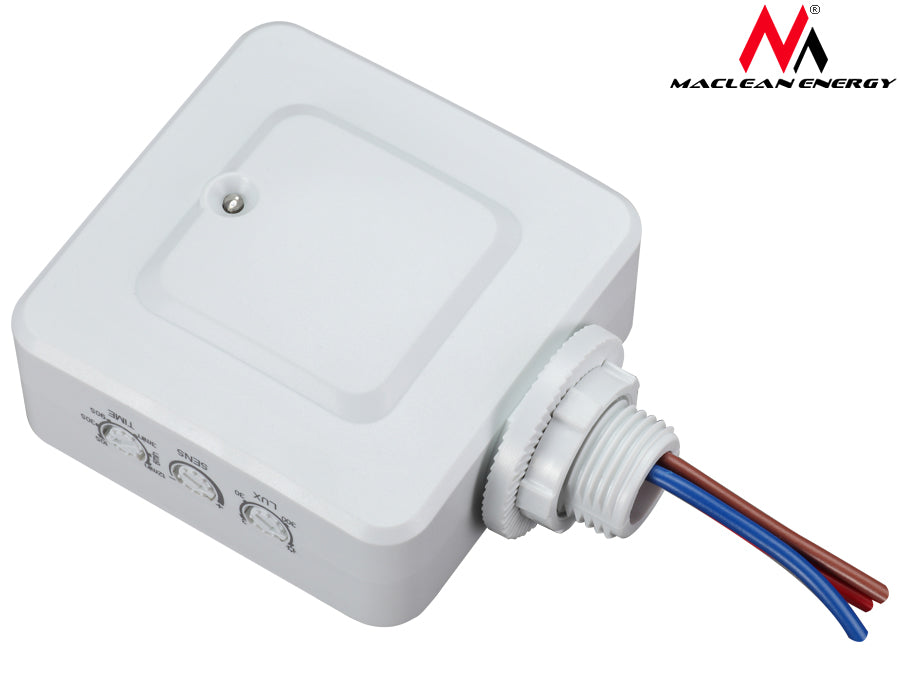

The product is a new saving-energy product; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz) and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. The wide detection field depends on detectors.
It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible to go through doors, panes of glass or thin walls.
Power Sourcing: 110 -240V/AC
Power Frequency: 50Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec max.12min±1min
Detection Range: 360°
Detection Distance:4-10m(radius), adjust.
HF System: 5.8GHz CW radar, ISM band
Transmission Power: <0.2mW
Installing Height: 4-15m
Power Consumption: approx 0.9W
Detection Motion Speed: 0.6-1.5m/s
It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible to go through doors, panes of glass or thin walls.
Power Sourcing: 110 -240V/AC
Power Frequency: 50Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec max.12min±1min
Detection Range: 360°
Detection Distance:4-10m(radius), adjust.
HF System: 5.8GHz CW radar, ISM band
Transmission Power: <0.2mW
Installing Height: 4-15m
Power Consumption: approx 0.9W
Detection Motion Speed: 0.6-1.5m/s
