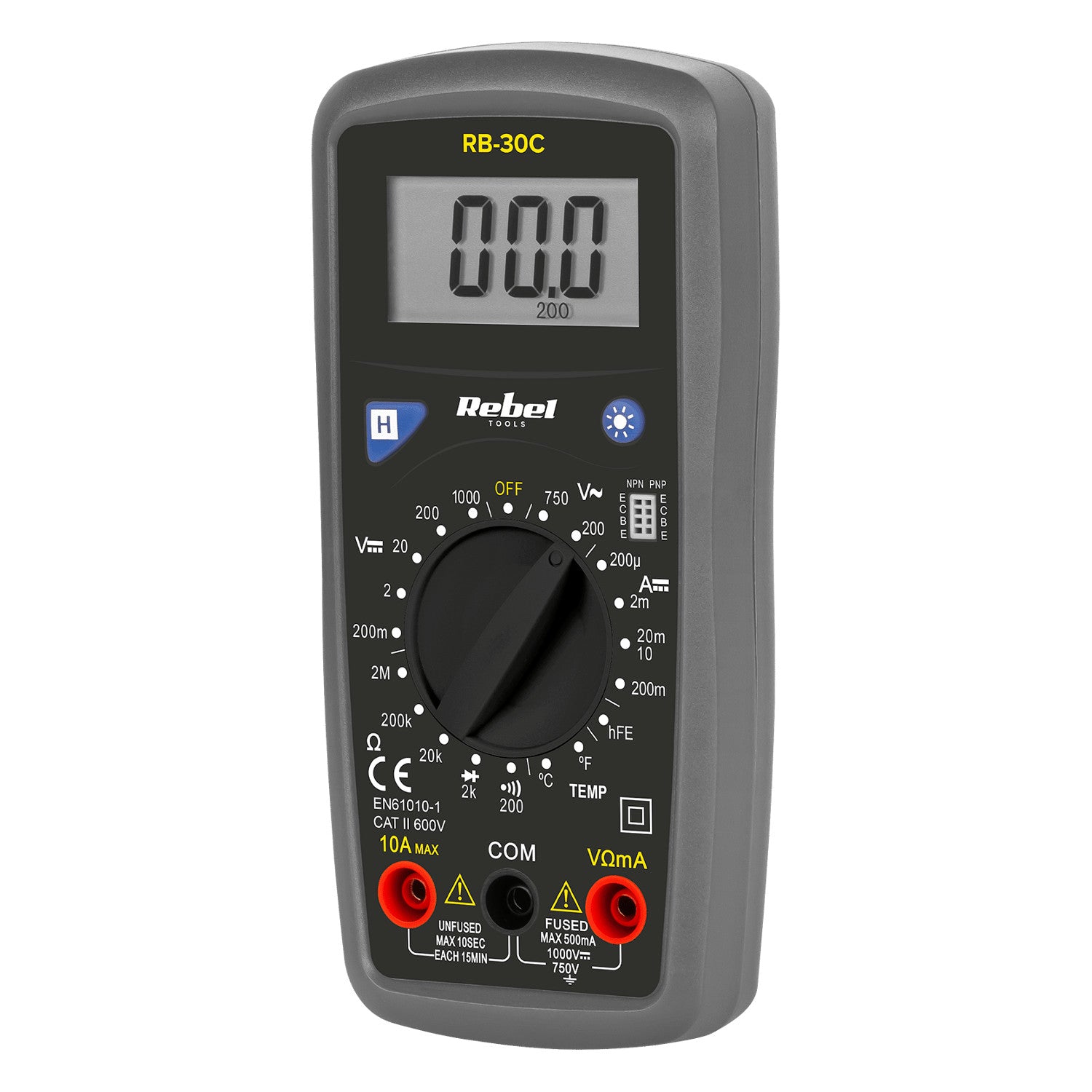

Rebel RB-30C High-Precision Universal Digital Multimeter

REBEL RB-30C MULTIMETER
The REBEL RB-30C multimeter is a versatile tool that is ideal for a wide range of electrical and electronic measurements. Thanks to its functionality and robust construction, it is the ideal choice for both professionals and DIY enthusiasts.
WIDE RANGE OF MEASUREMENTS
The RB-30C meter enables precise measurements of DC voltage (up to 1000 V) and AC voltage (up to 750 V), DC current (up to 10 A), and resistance (up to 2 MOhm), and also offers functions for testing batteries (1.5 V, 9 V), diodes, hFE transistors, and checking circuit continuity. Additionally, the device is equipped with a temperature measurement function, which increases its versatility.

EASE OF USE AND CONVENIENCE
The meter features a backlit display measuring 45 x 21 mm, ensuring that results are easy to read even in low light. Manual selection of measurement ranges allows for precise adjustment of settings to current needs, and the last reading hold function makes it easy to read the results after the measurement is complete. A built-in low-battery indicator alerts the user when the battery needs to be replaced.
PRACTICAL FEATURES AND ROBUST CONSTRUCTION

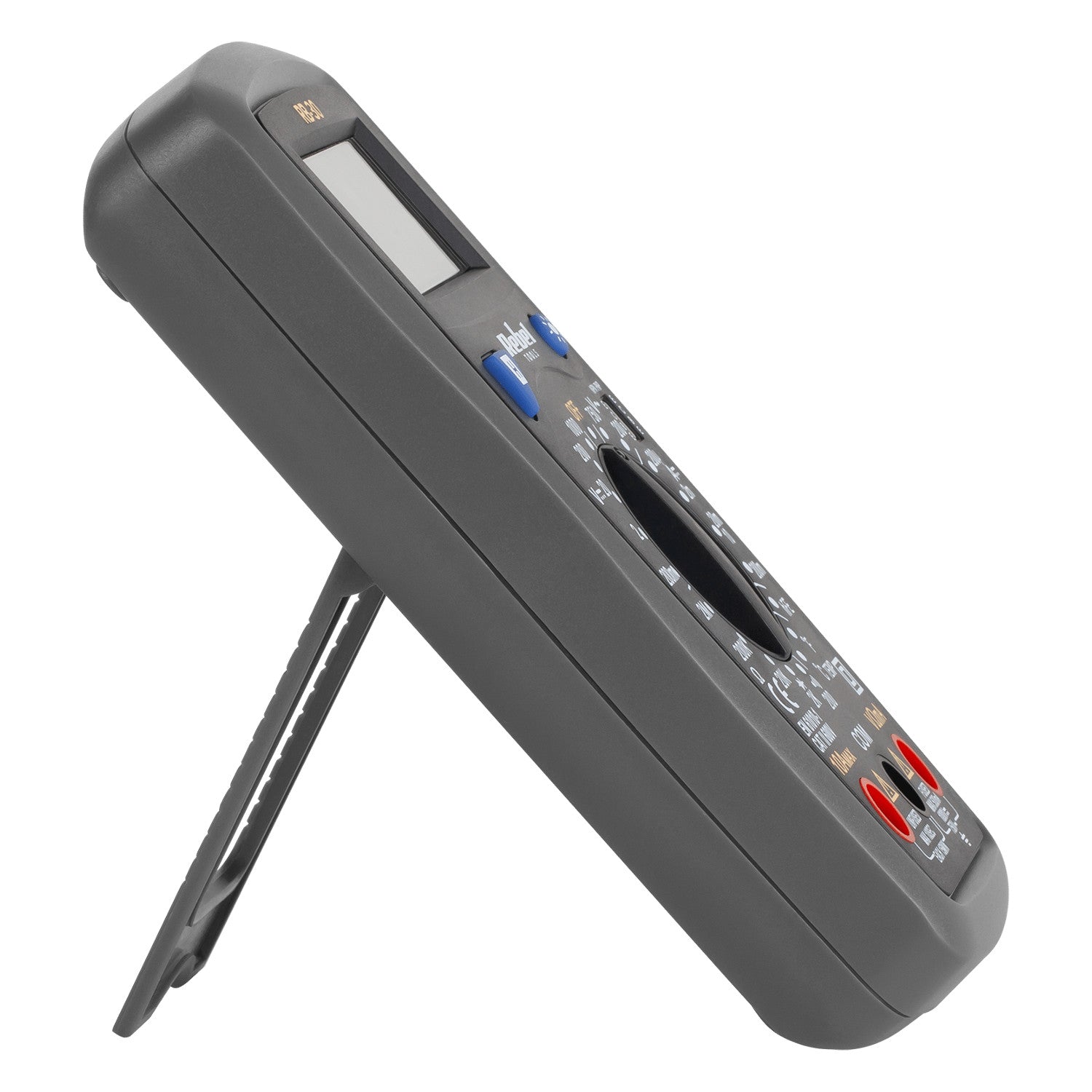

The REBEL RB-30C meter is equipped with a fold-out stand that facilitates stable positioning during operation, which is particularly useful for longer measurements. Automatic polarity detection and a sampling rate of twice per second ensure accurate and reliable measurements.

- DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V ±(1%+5)
- AC voltage: 200 V, 750 V ±(2%+10)
- DC current: 200 µA, 2 mA, 20 mA, 200 mA, 10 A ±(2%+10)
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm ±(1%+4)
- Diode test
- hFE transistor test
- Circuit continuity check
- Temperature measurement
- Backlit display
- Manual measurement range selection
- Fold-out stand
- Hold function for last reading
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
- Display size: 45 x 21 mm
- Operating temperature: 0°C ~ 40°C at humidity <80%
- Storage temperature: -10° ~ 50°C at humidity <85%

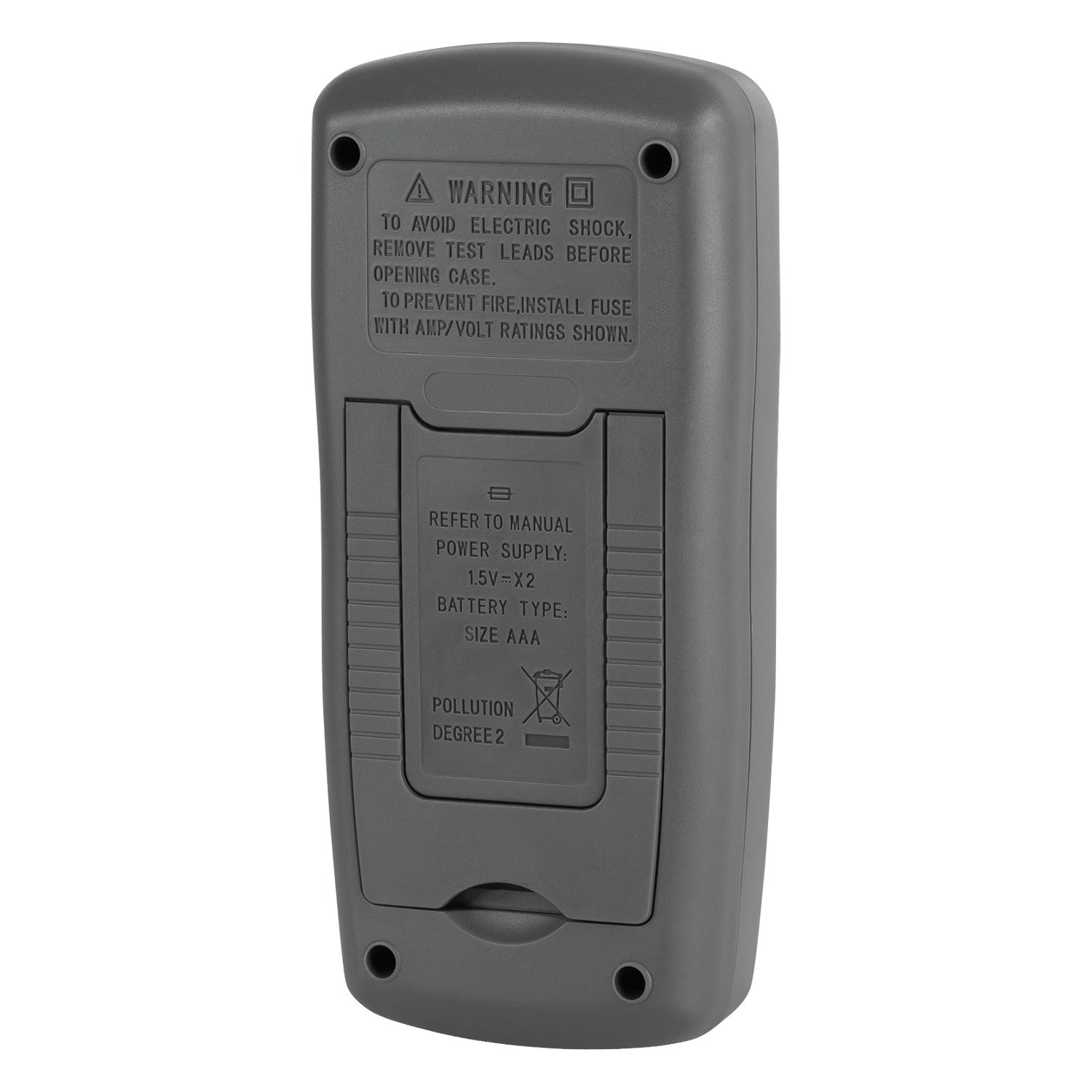

- Power supply: 2x AAA batteries
- Dimensions: 160 x 76 x 32 mm
- Weight: 150 g

- Rebel RB-30C Universal Digital Multimeter

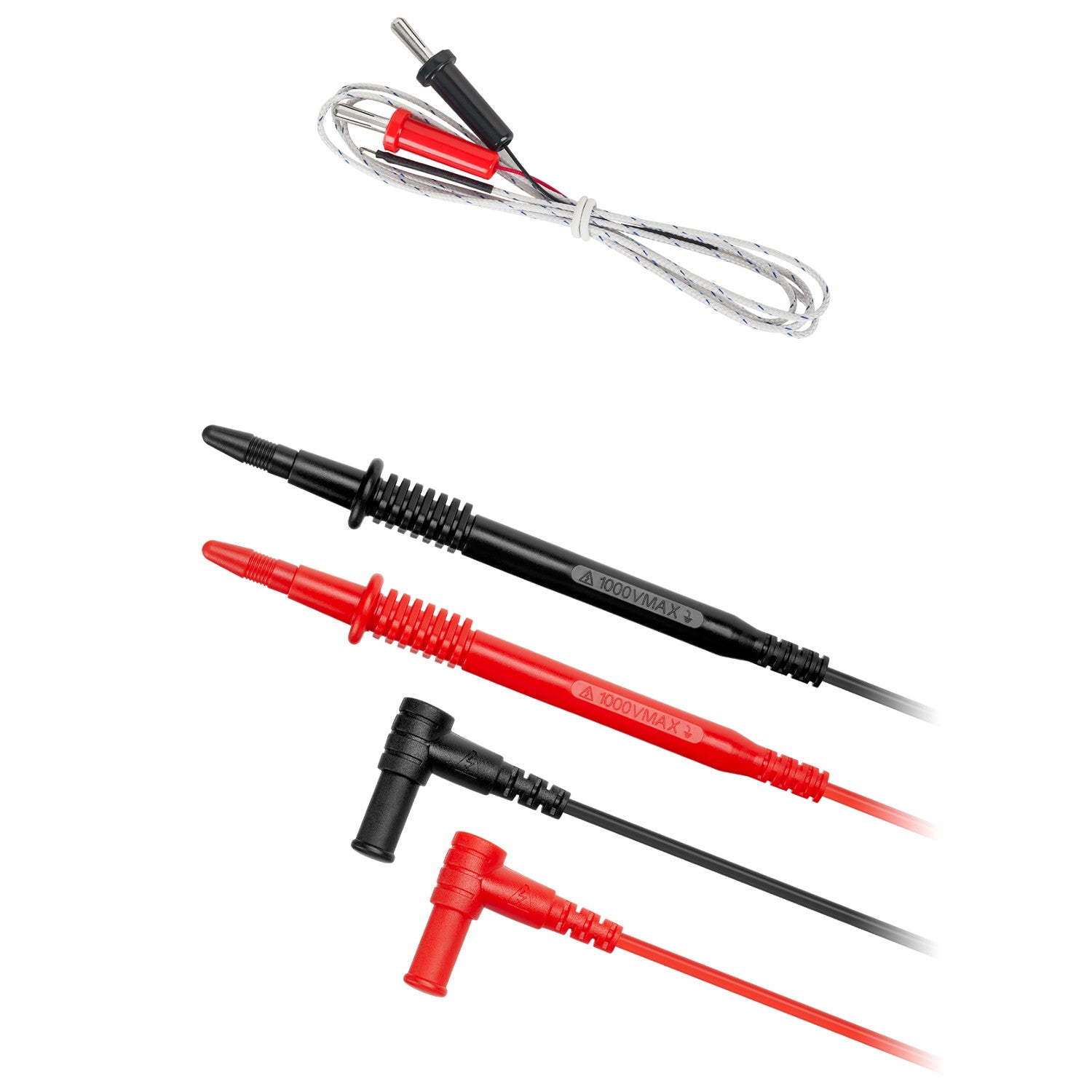

- Test leads
- Type K thermocouple
- User manual

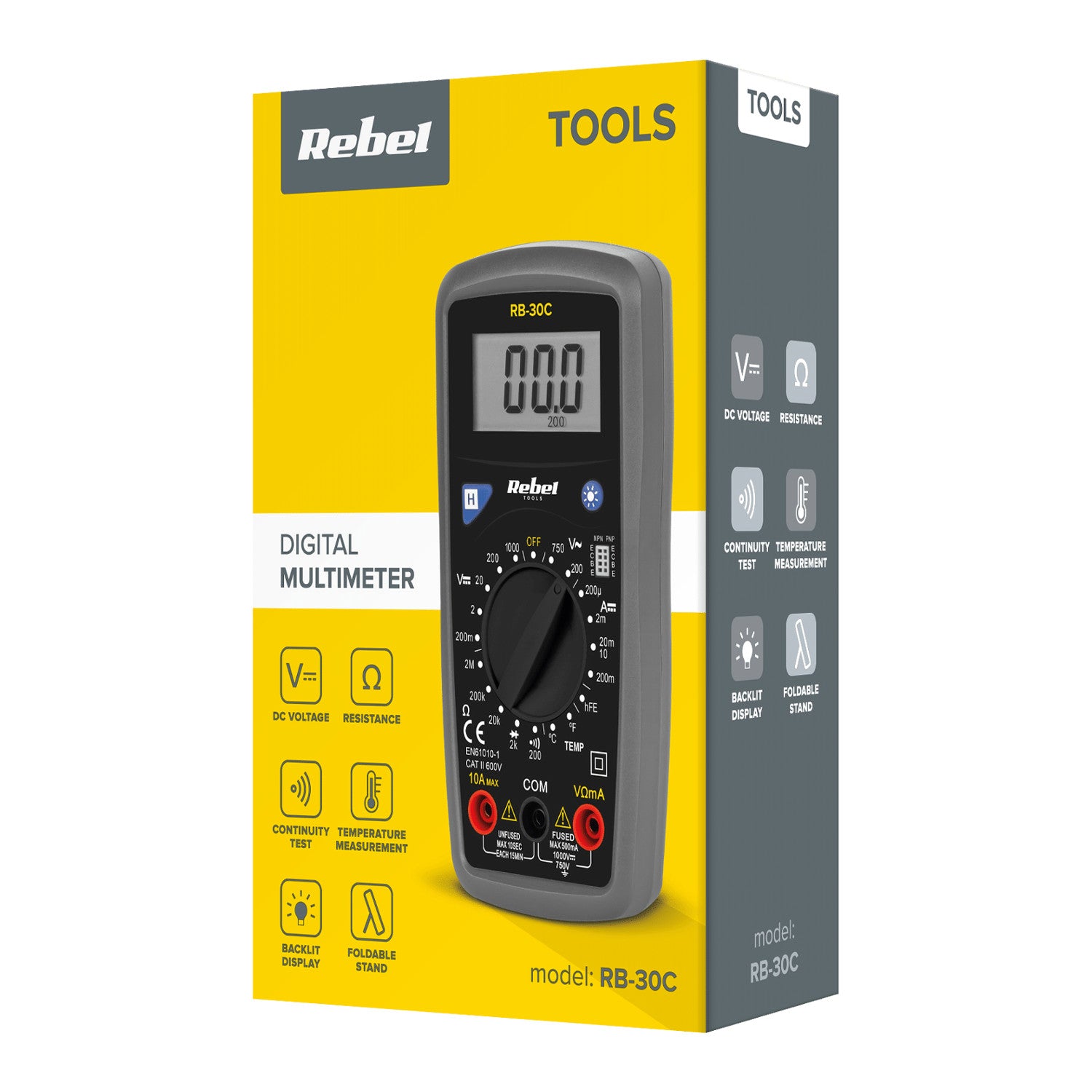

- Manufacturer's packaging

COMPACT AND LIGHTWEIGHT
The meter is powered by two AAA batteries, ensuring a long service life. Its compact dimensions (160x76x32 mm) and light weight (150 g) make it easy to carry and store. The device is designed to operate over a wide temperature range, from 0°C to 40°C, making it suitable for most working conditions.

- DC voltage measurement: 200 mV, 2 V, 20 V, 200 V, 1000 V ±(1%+5)
- AC voltage measurement: 200 V, 750 V ±(2%+10)
- Diode test
- hFE transistor test
- Circuit continuity test
- Temperature measurement
- Backlit display
- Manual measurement range selection
- Fold-out stand
- Hold function for last reading
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Display size: 45 x 21 mm
