The main purpose of the MCE314 sensor is to automatically control lighting, but it is also possible to connect other electrical devices (such as electric heating, air conditioning, etc.), provided that the power receiver does not load the switch with a power greater than 1200 W (resistive load) or 600 W (inductive load).
Thanks to our sensors, you will save on electricity bills, because the lighting will turn on only when needed!

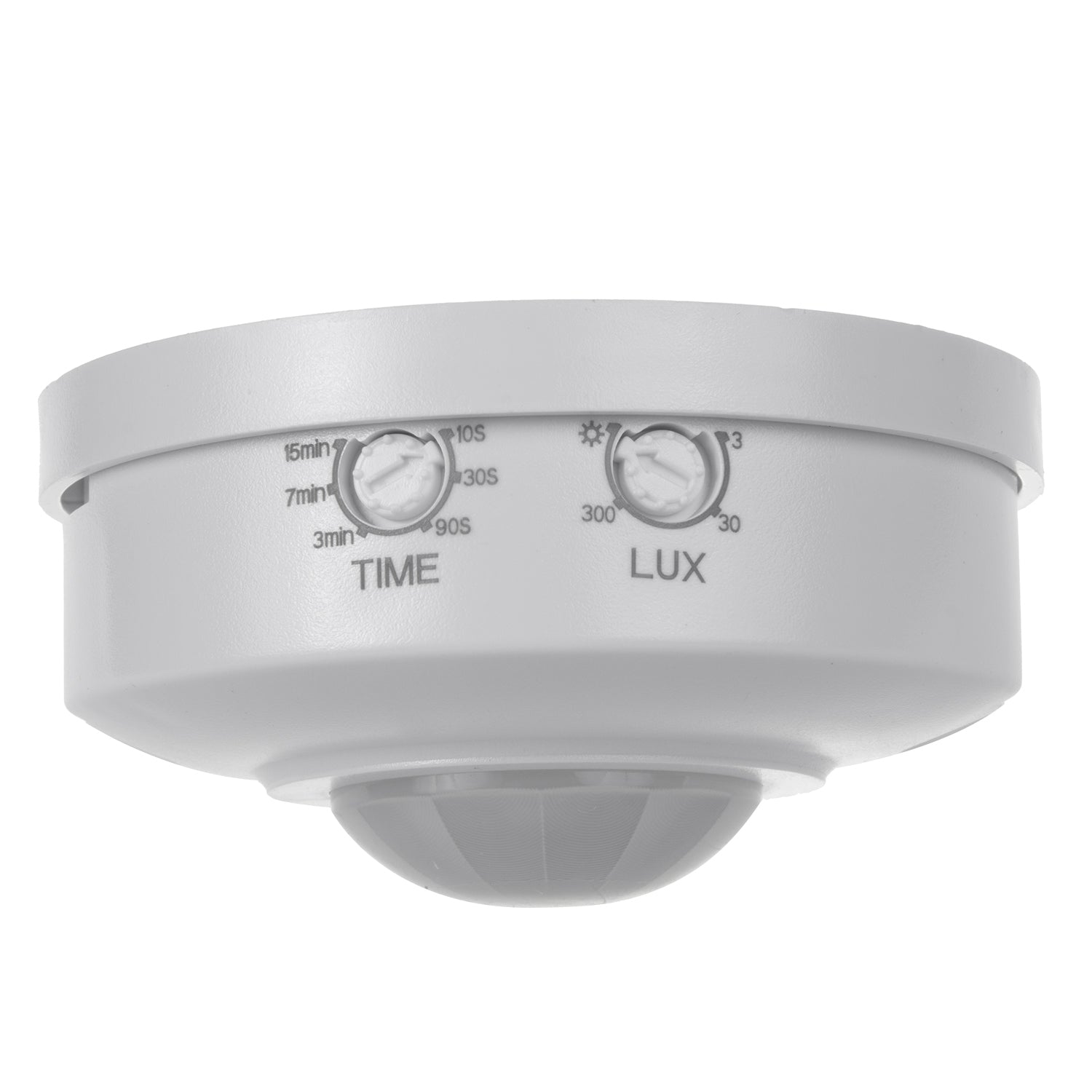

The TIME knob is used to adjust the lighting time (from about 10 sec to 15 minutes). The LUX knob is used to set the ambient light sensitivity (range from 3 to 2000 LUX). When ambient light is insufficient and you want the device to work both day and night, set the knob to the day position (sun icon).
The 360° detection angle and detection distance of up to 6 meters allow you to effectively monitor a large area.
- Manufacturer: Maclean
- Model: MCE314 W
- Color: white
- Power source: 110-240 V/AC
- Power frequency: 50/60 Hz
- Lighting sensor: <3-2000 LUX (adjustable)
- Time delay: min. 10 sec, max. 15 min (+/- 2 min.)
- Operating temperature: -20 to +40°C
- Permissible humidity: <93% RH
- Maximum load 220-240 V/AC: 1200 W (resistive load) / 600 W (inductive load)
- Maximum load 110-130 V/AC: 800 W (resistive load) / 300 W (inductive load)
- Detection area: 360°
- Detection distance: max. 6 m (<24°C)
- Power consumption: approximately 0.5 W
- Installation height: 2.2 - 4 m
- Speed of motion detection: 0.6 - 1.5 m/s
- Degree of protection: IP20
- Protection against electric shock: II
- Number of sensors included: 4

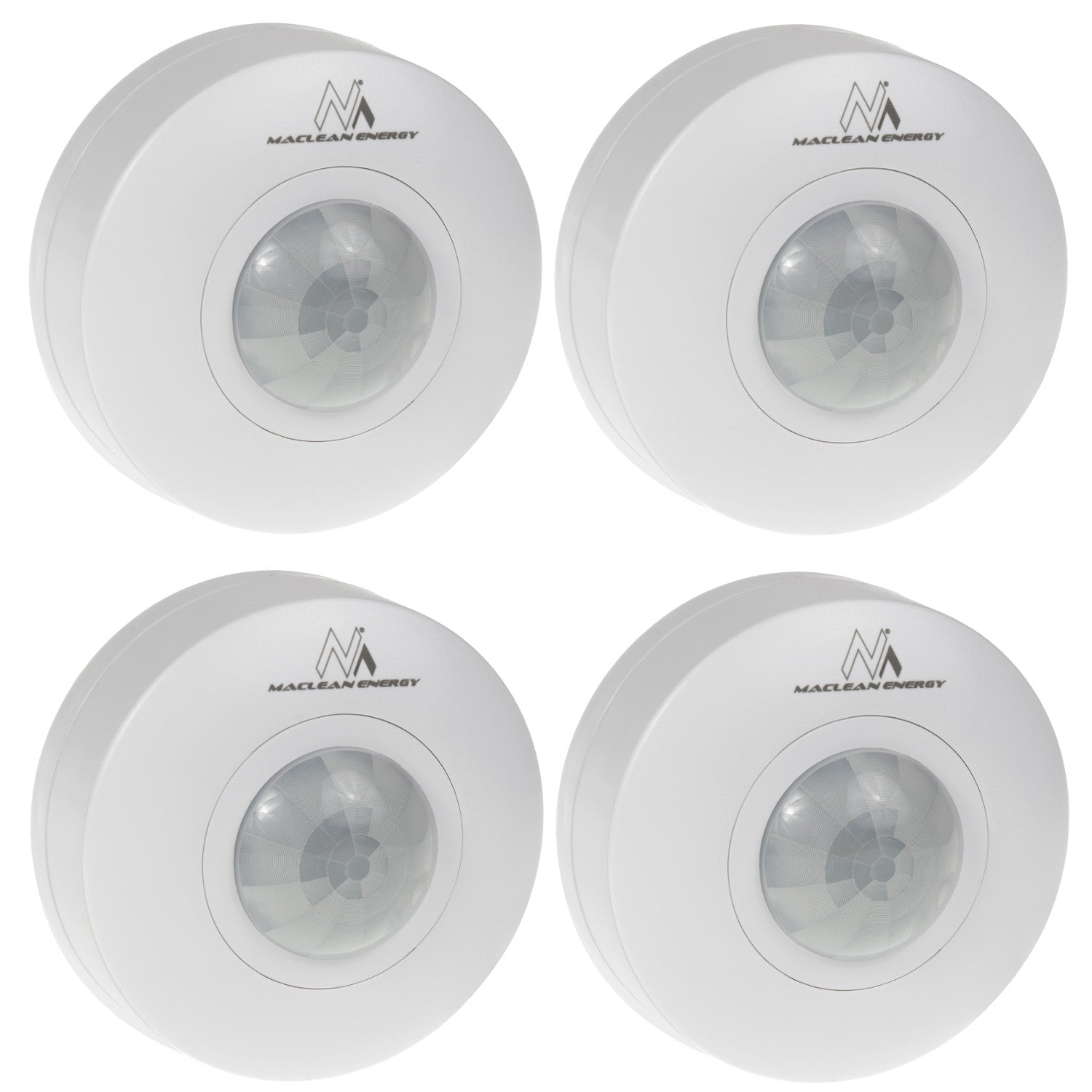

- Maclean MCE314 W PIR motion sensor - 4 pieces
- User manual
- Manufacturer's packaging.
- PIR sensor detects human body heat
- Motion detection angle of 360°
- Works with LED lighting
- Possibility to adjust lighting time and light intensity level at which the device starts working (dusk sensor)
- Sensor range: max. 6 m
- Color: white
- Set includes 4 sensors.
