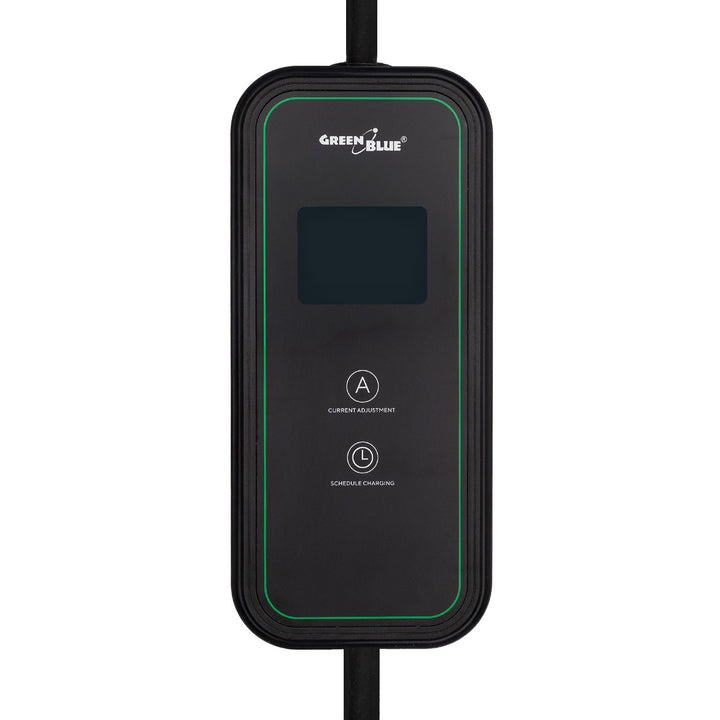

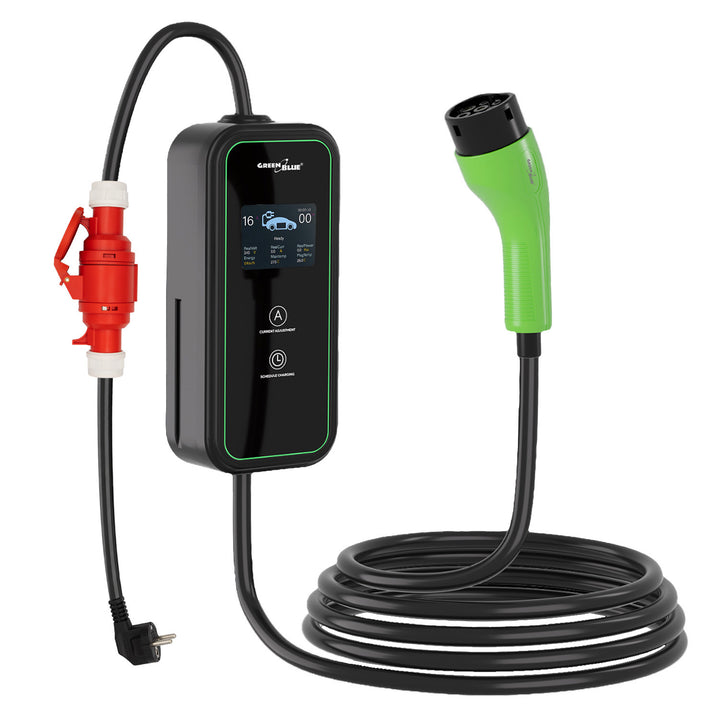

11 KW CAPACITY AND FULL CHARGING FLEXIBILITY ANYWHERE

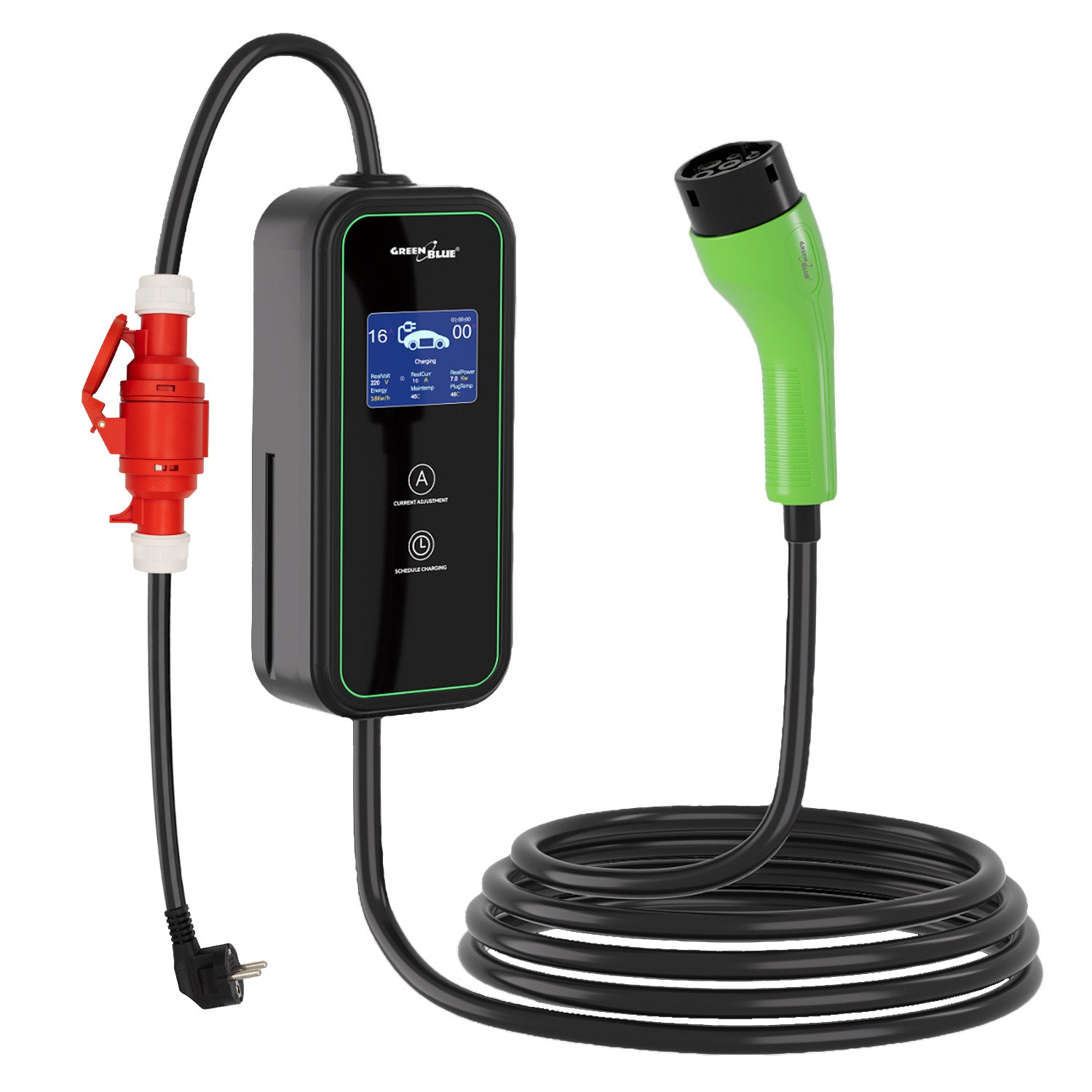

The GreenBlue GB1100 portable charger for electric and plug-in hybrid vehicles-in GreenBlue GB1100 is an advanced mobile EVSE device that redefines the concept of independence for every electric vehicle driver. Offering a maximum output of up to 11 kW on a 380 V three-phase power supply (with the option of single-phase 230 V operation), the device drastically reduces the time needed to fully charge batteries compared to standard wall chargers. The universal Type 2 connector ensures compatibility with most EVs and PHEVs available on the European market. With a total length of 680 centimeters, charging your vehicle in your driveway, garage, or at a public parking lot becomes exceptionally convenient and hassle-free. The dedicated, ergonomic carrying bag included in the set makes it easy to pack the GB1100 charger into your trunk and take it with you on any trip, turning any power outlet into your own personal, fast-charging station.
SMART WIFI CONTROL AND TUYA / SMART LIFE MOBILE APP
The GreenBlue GB1100 is a modern device designed for the smart home concept, equipped with a Wi-Fi module and integration with the popular Tuya Smart and Smart Life ecosystems. The dedicated mobile app gives the driver full control over the charging process from anywhere in the world. From a smartphone, you can adjust the charging current and set a timer, allowing you to take advantage of cheaper nighttime rates and significantly reduce vehicle operating costs. The app also provides a detailed history of charging sessions and energy consumption, making it easy to monitor expenses, and the device-sharing feature in the app allows other family members to manage the station just as conveniently. Current operating parameters, such as current, power, energy consumed, and session duration, are simultaneously displayed on a clear and easy-to-read LCD screen located directly on the charger’s housing.
The Tuya Smart app also allows you to set a target amount of energy for the car to charge. This feature is particularly useful in systems equipped with solar panels and energy storage. Energy generated during the day can be stored in the battery and then used at night to charge the car. Setting a specific energy limit in kWh allows for better control over the consumption of the stored energy, reserving some of it for other household needs, and reducing the risk of drawing power from the grid once the storage system is depleted. The effectiveness of this solution also depends on the configuration of the photovoltaic system, the energy storage system, and the energy management system.
- Manufacturer: GreenBlue
- Model: GB1100
- Standards: IEC 62196-1/2; IEC 62752; IEC 61851
- Voltage: 220 V AC (single-phase) 380 V AC (three-phase)
- Max. output power: 11 kW (with three-phase power supply)

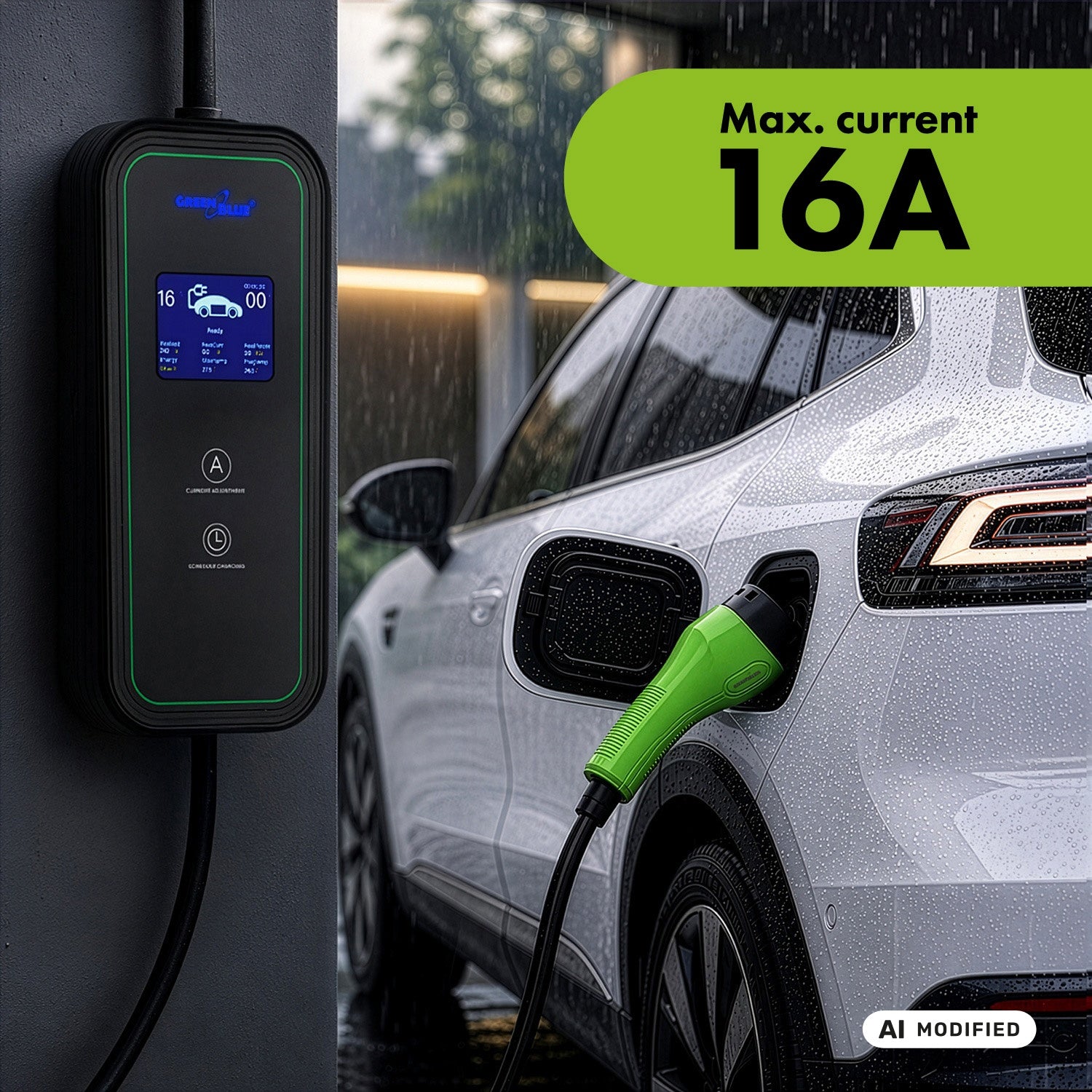

- Charge current adjustment range: 6/8/10/13/16 A
- Frequency: 50 Hz/60 Hz
- Operating current: 16 A
- Insulation resistance: >10 MΩ
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +80°C
- Operating humidity: 5%–95% relative humidity, non-condensing
- Protection rating: IP65
- Leakage current protection: Type A + 6 mA DC

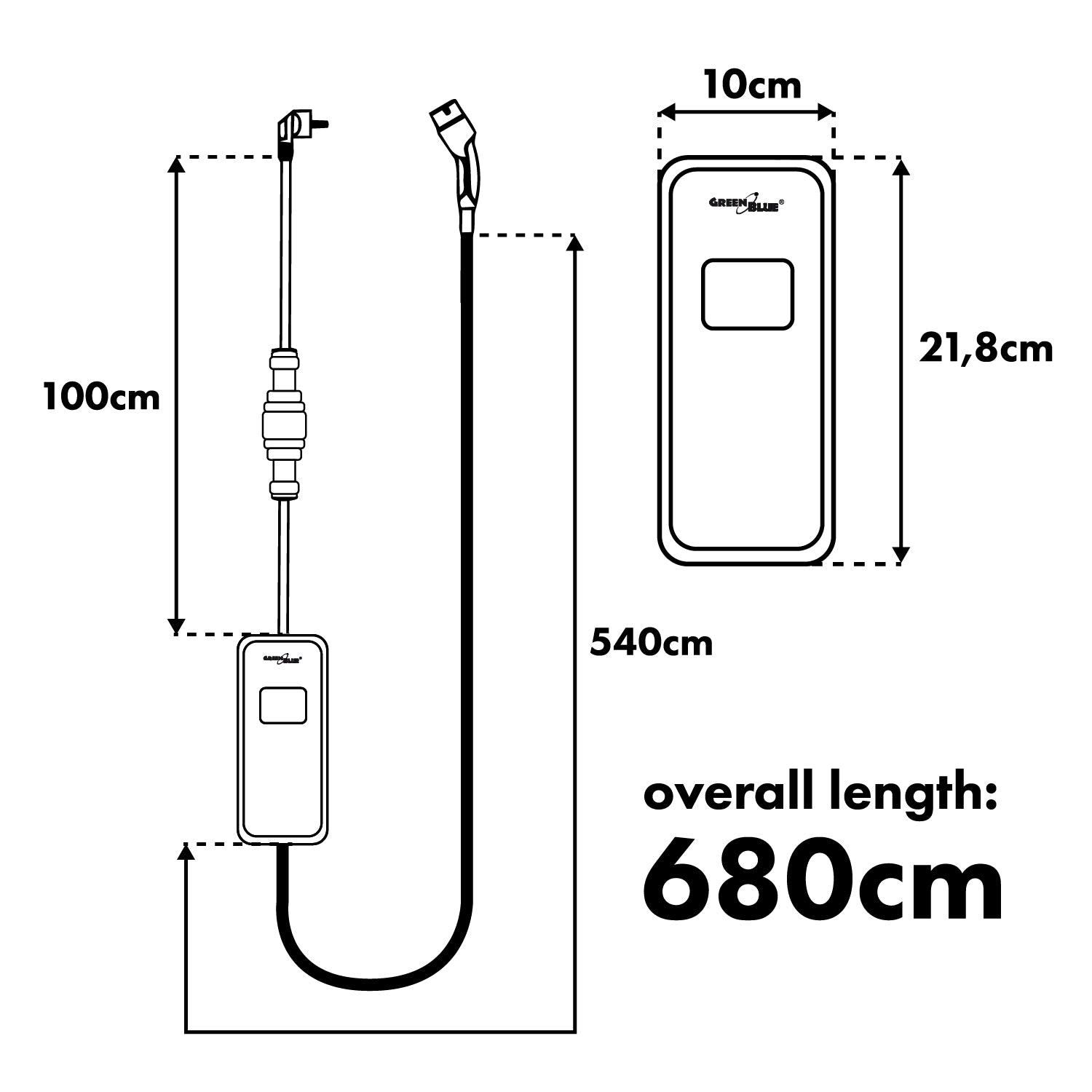

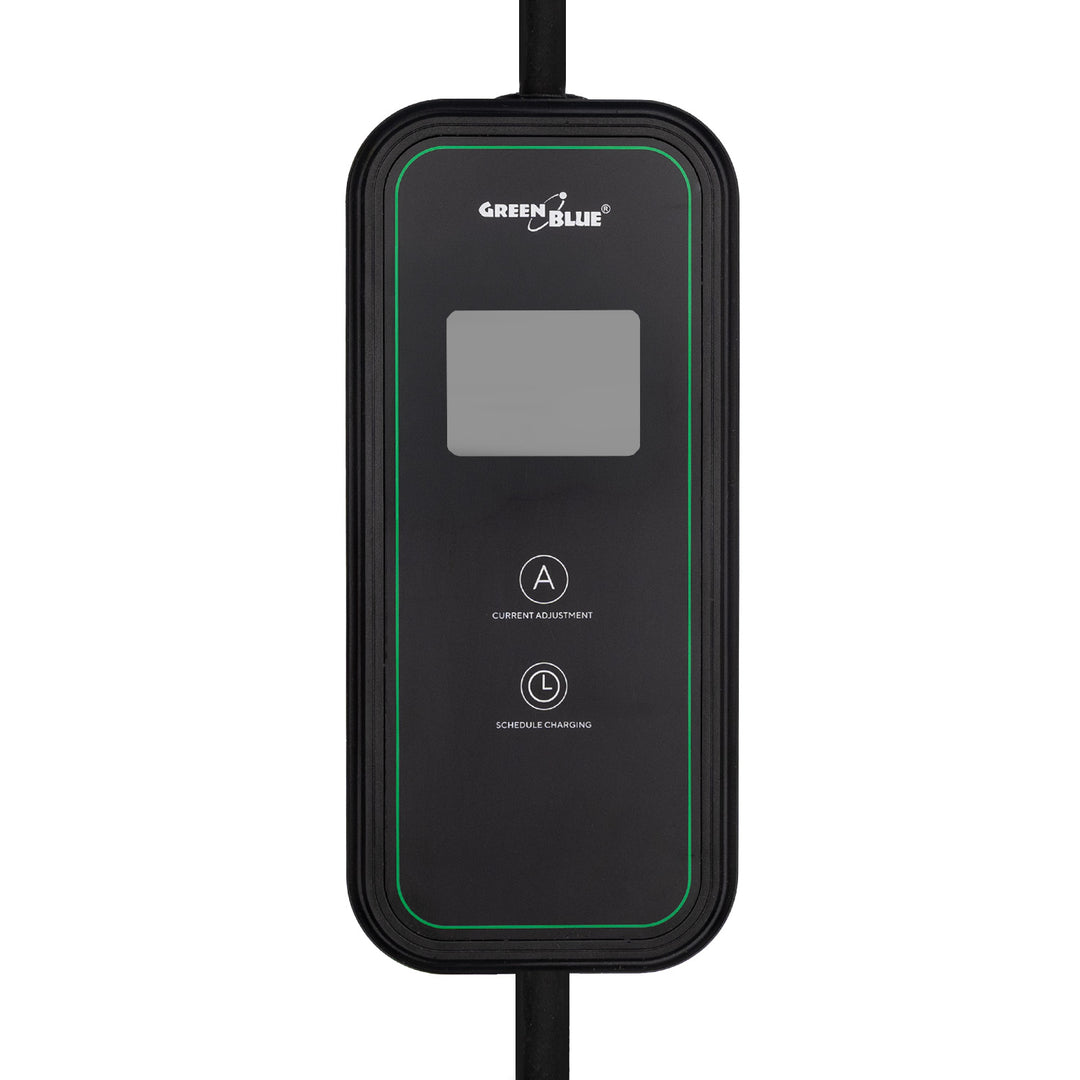

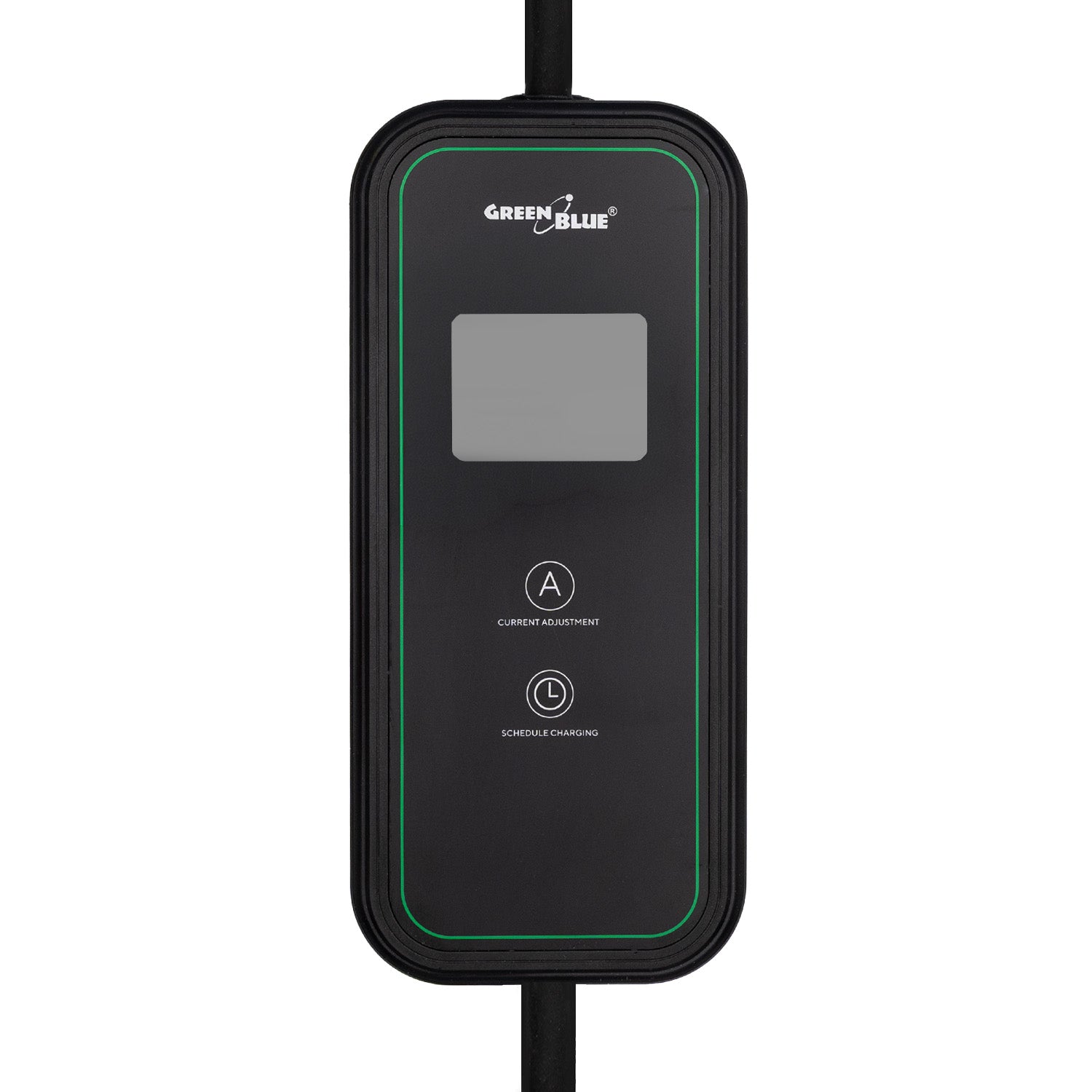

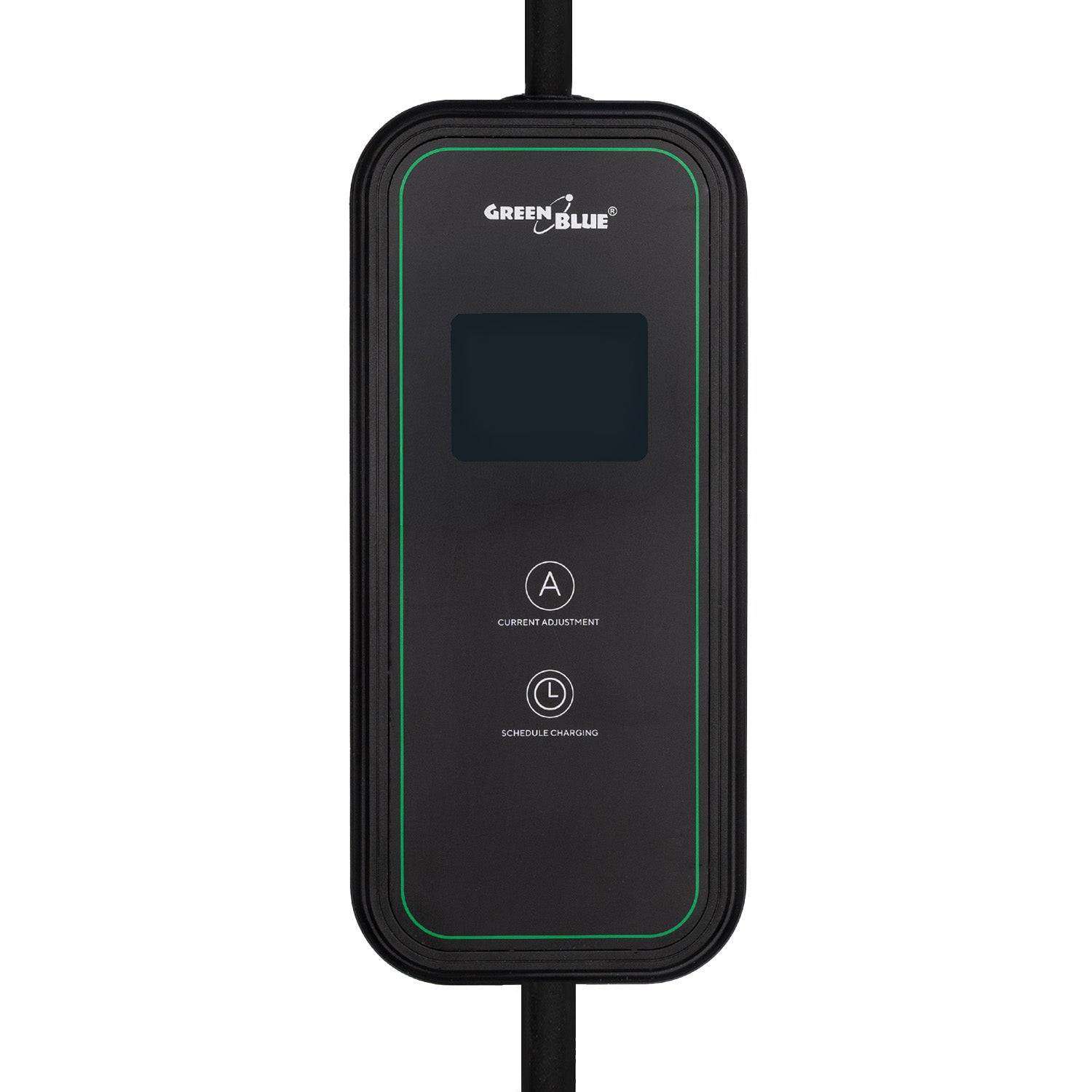

- Control box dimensions: 218 x 100 x 60 mm
- Charging delay: max. 12 hours
- Total length: 680 cm
- Screen material: LCD

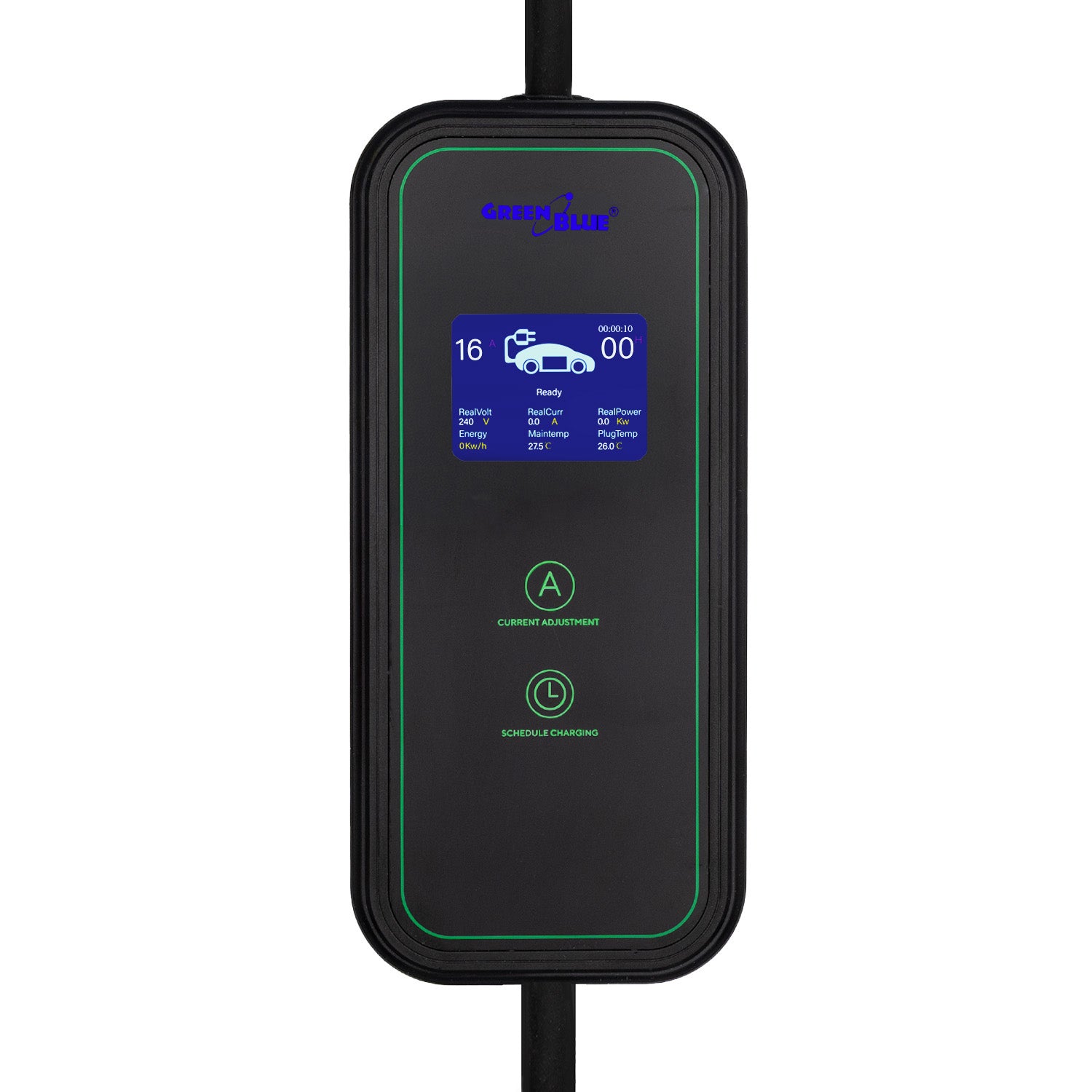

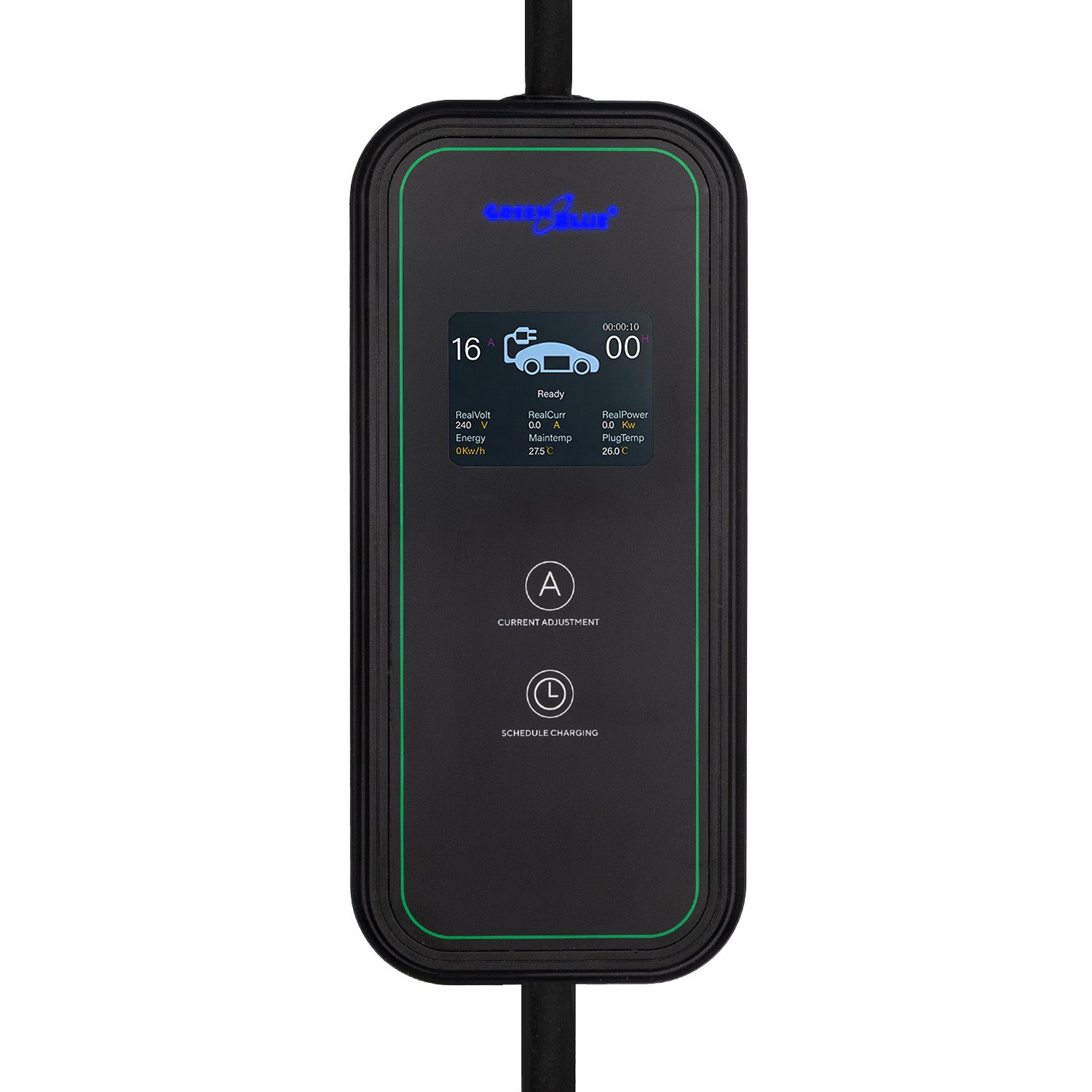

- Display information: selected charging current, charging time, status, power, plug and housing temperature, energy, voltage, timer
- Compatible with apps: Tuya / Smart Life
- Screen size: 6.1 cm

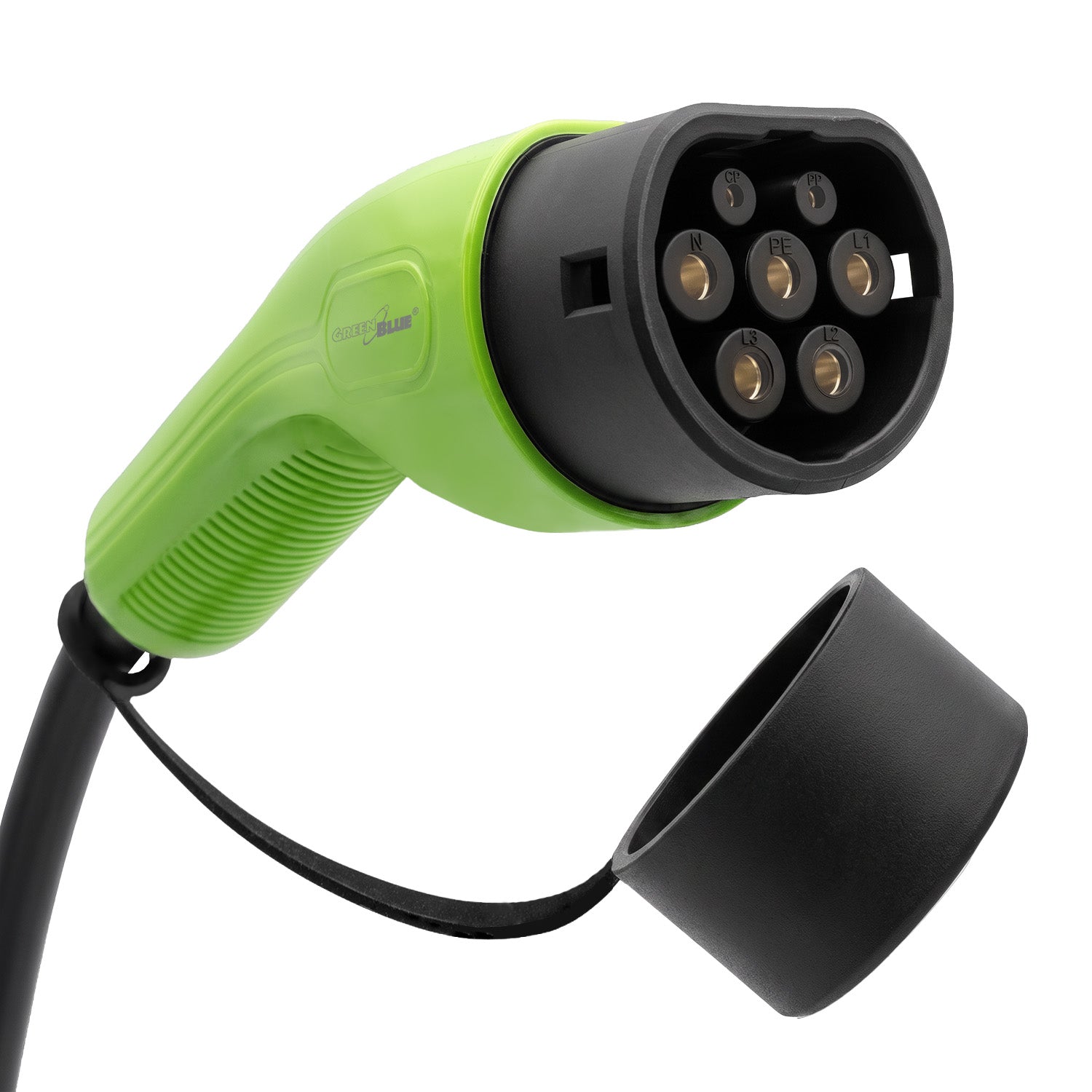

- Charging interface: Type 2

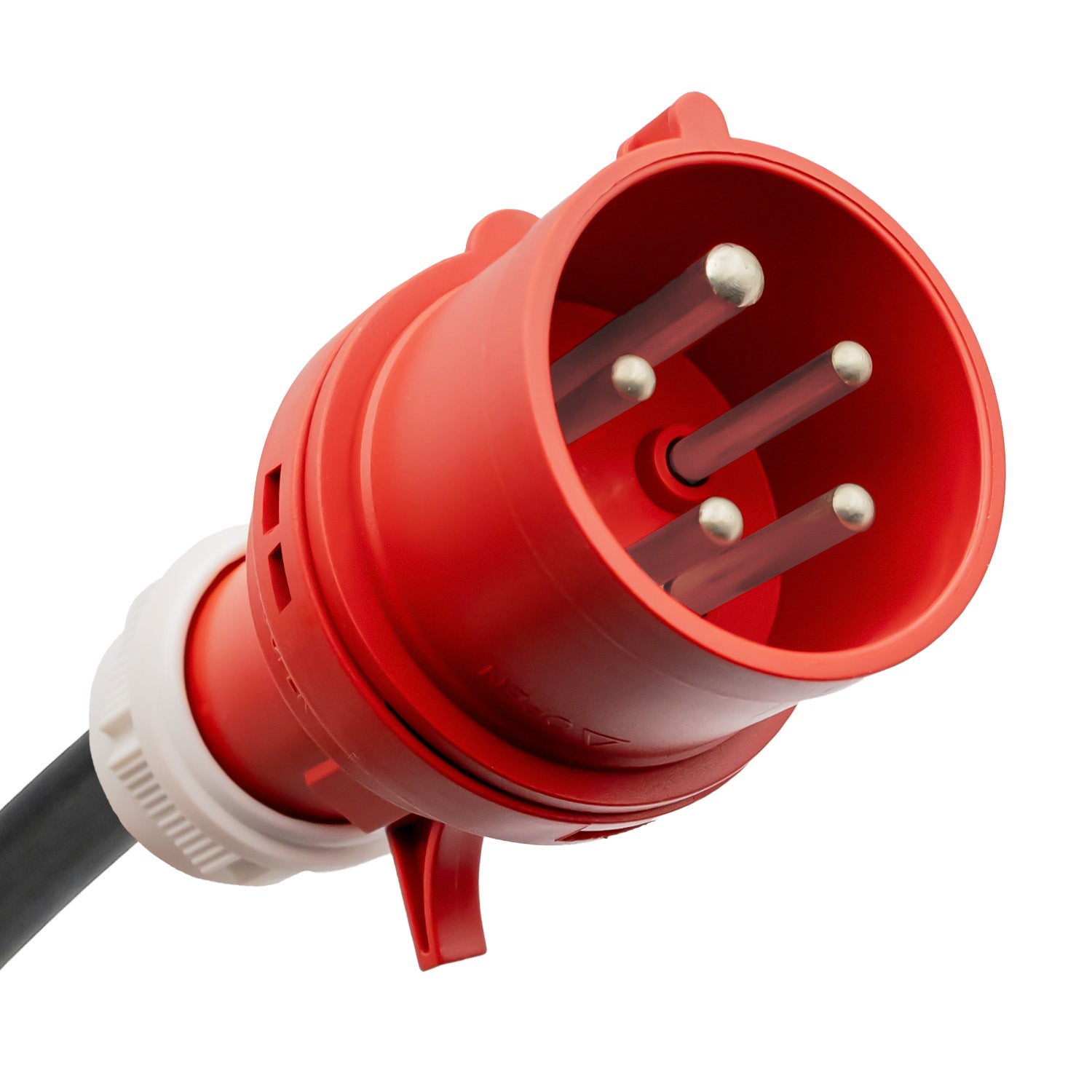

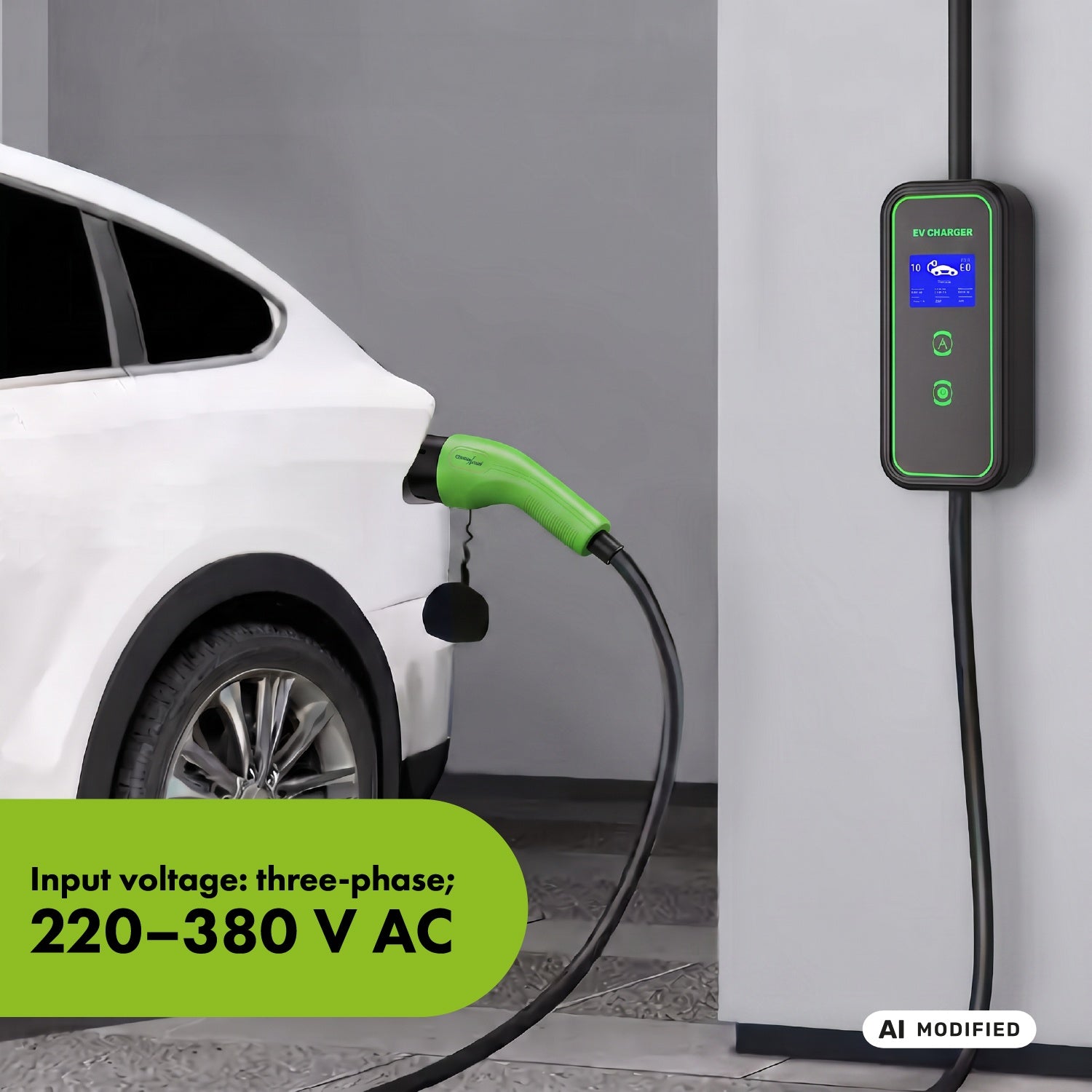

- Input voltage: three-phase; 220–380 V AC

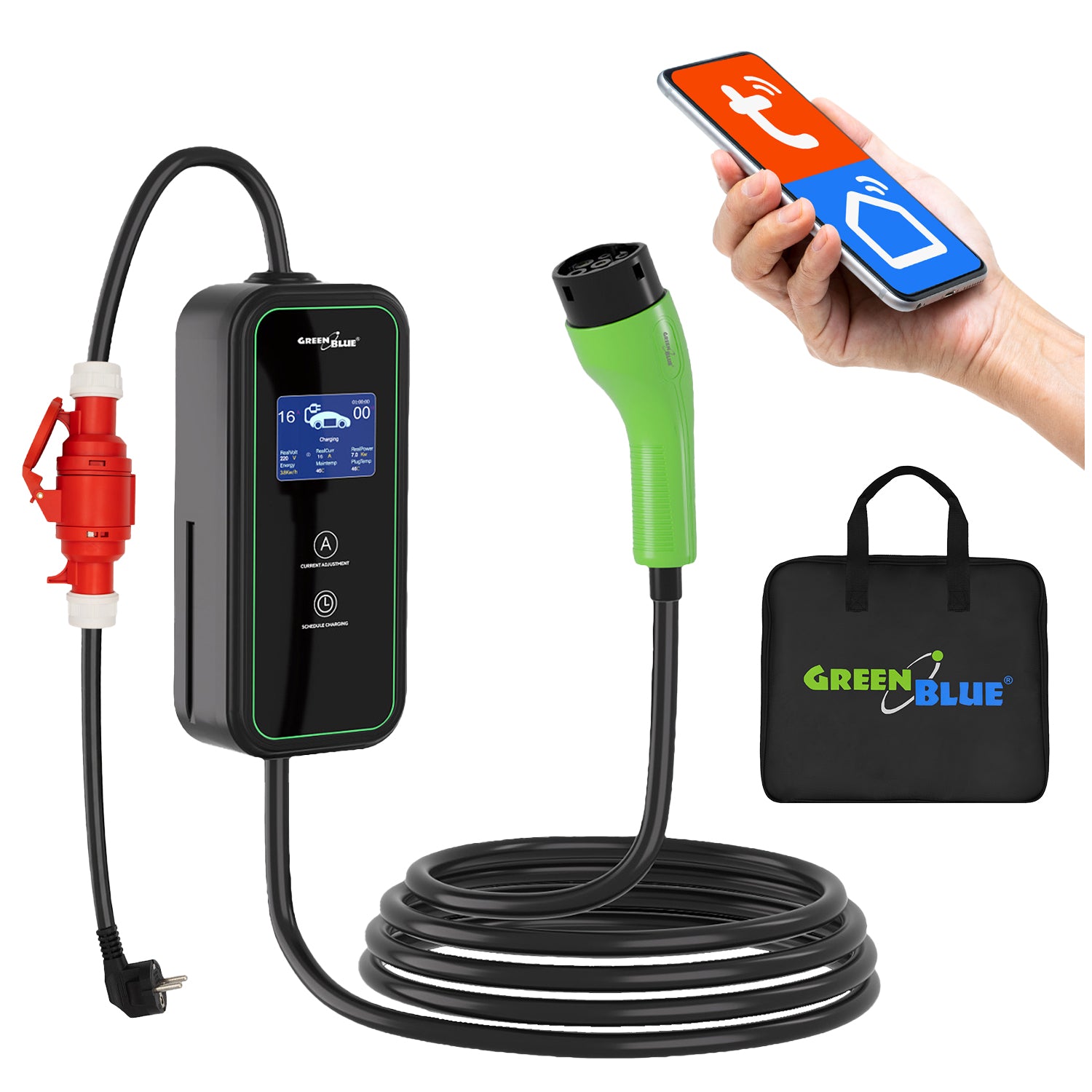

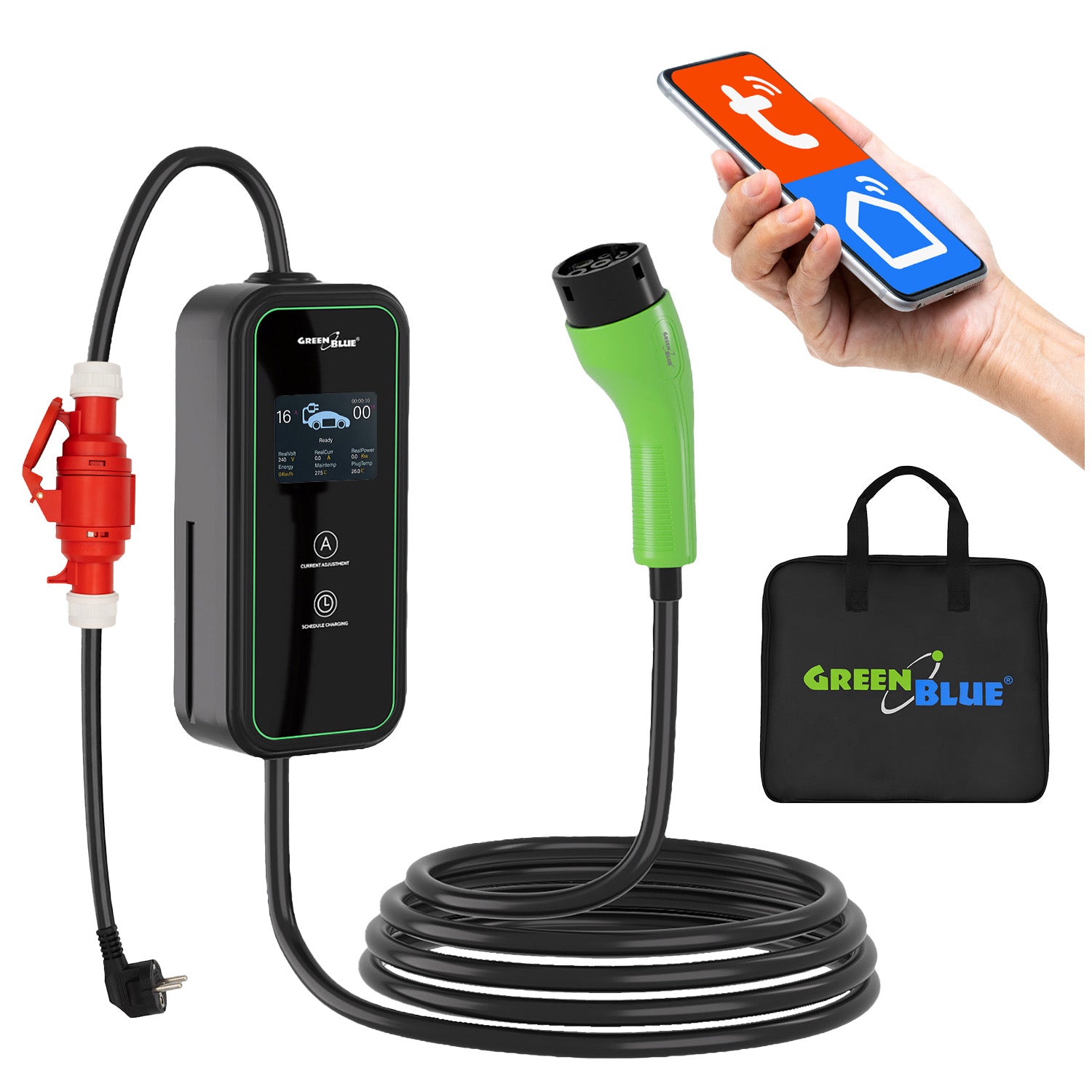

- GreenBlue GB1100 EV/PHEV Charger

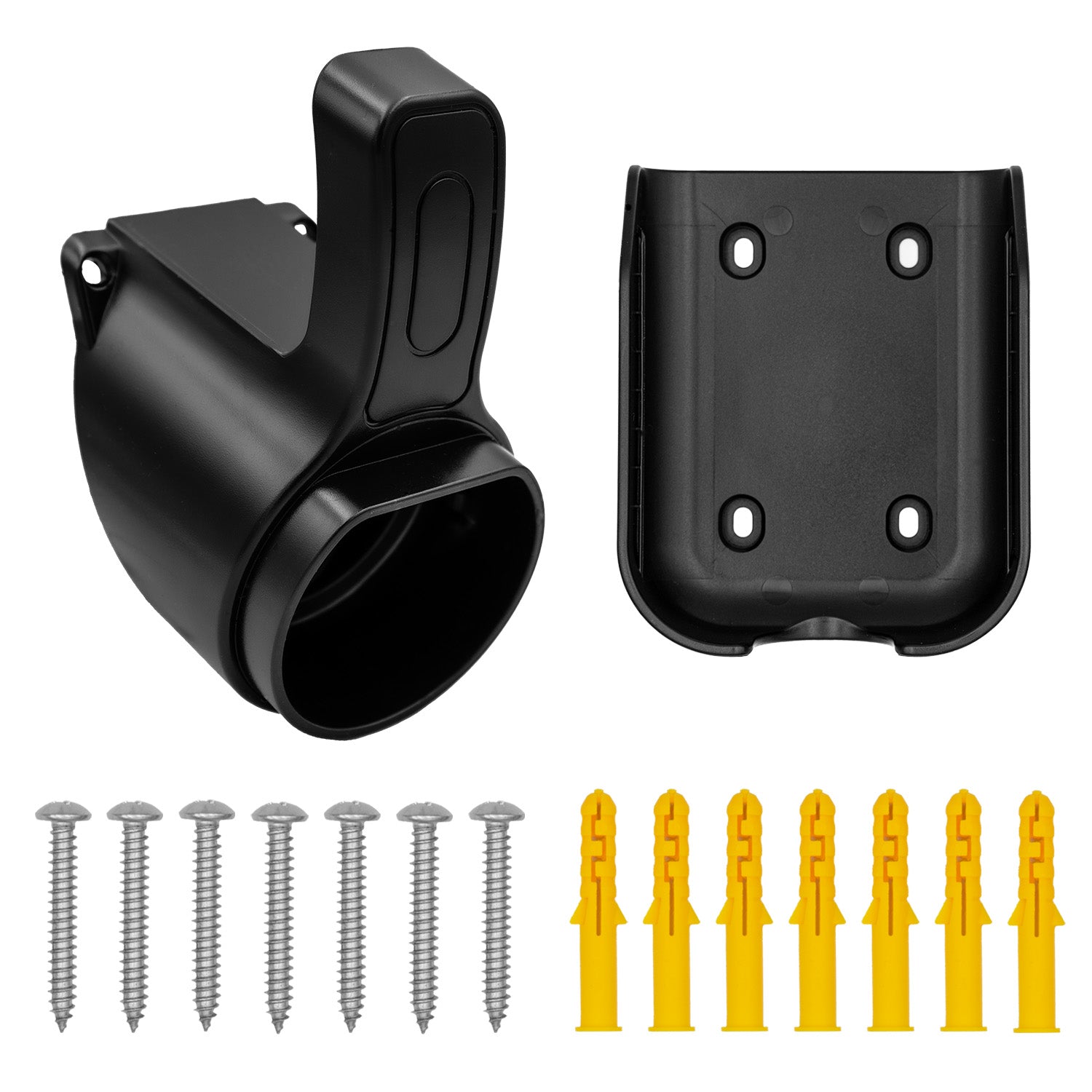

- EV Plug Holder
- Wall Mount for Control Box

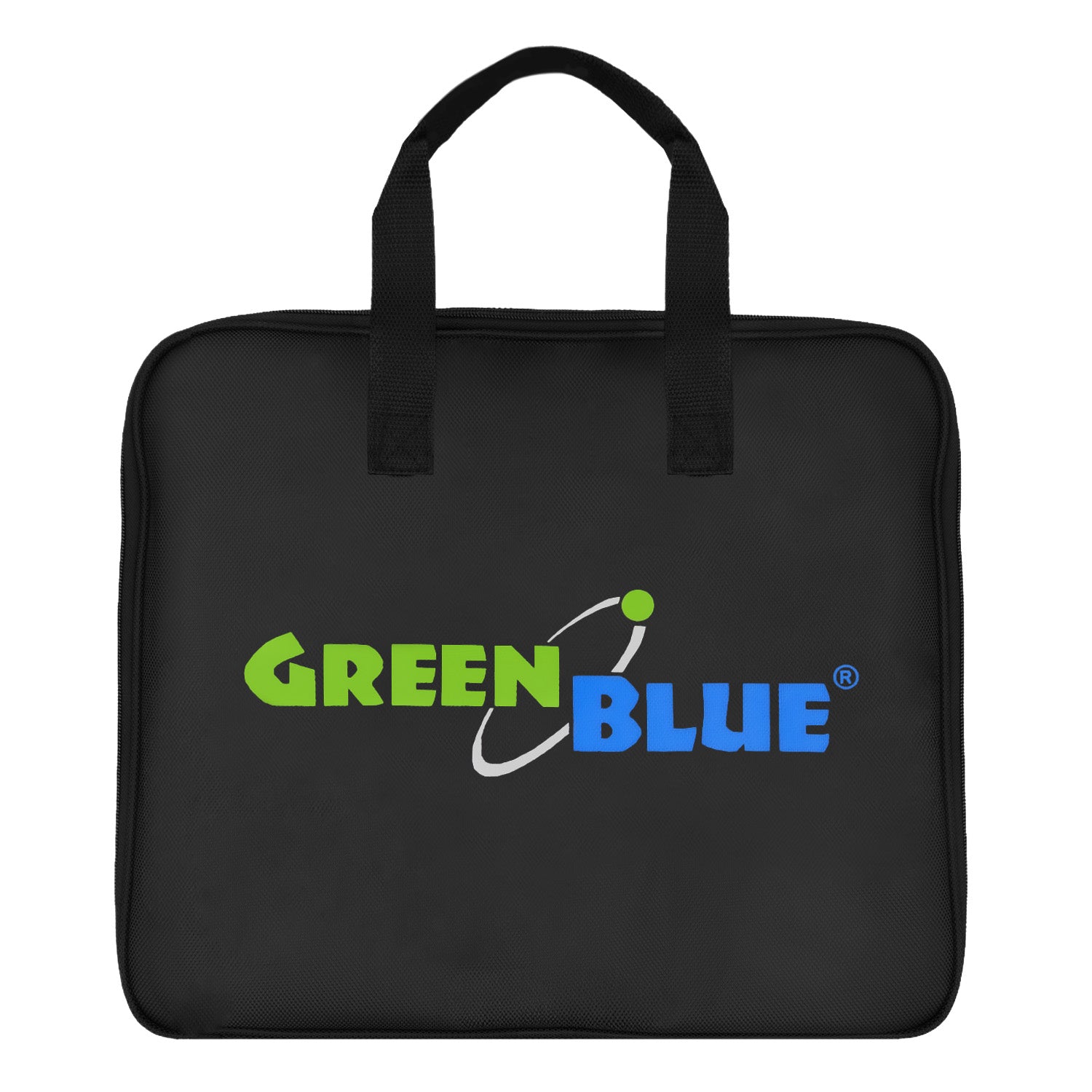

- Carrying Bag
- User Manual
- Manufacturer's Packaging

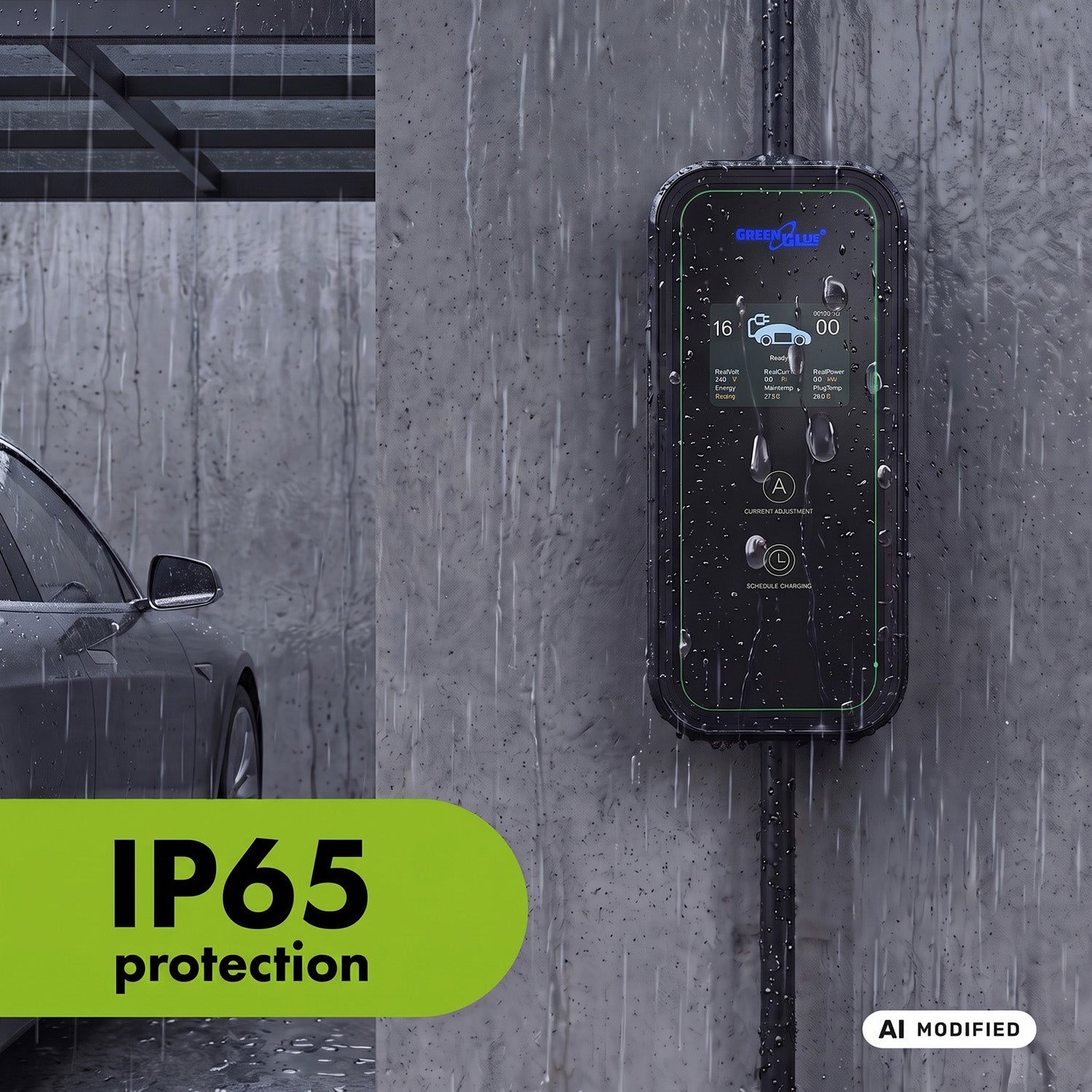

MAXIMUM SAFETY, IP65 RATING, AND SMART THERMAL PROTECTION

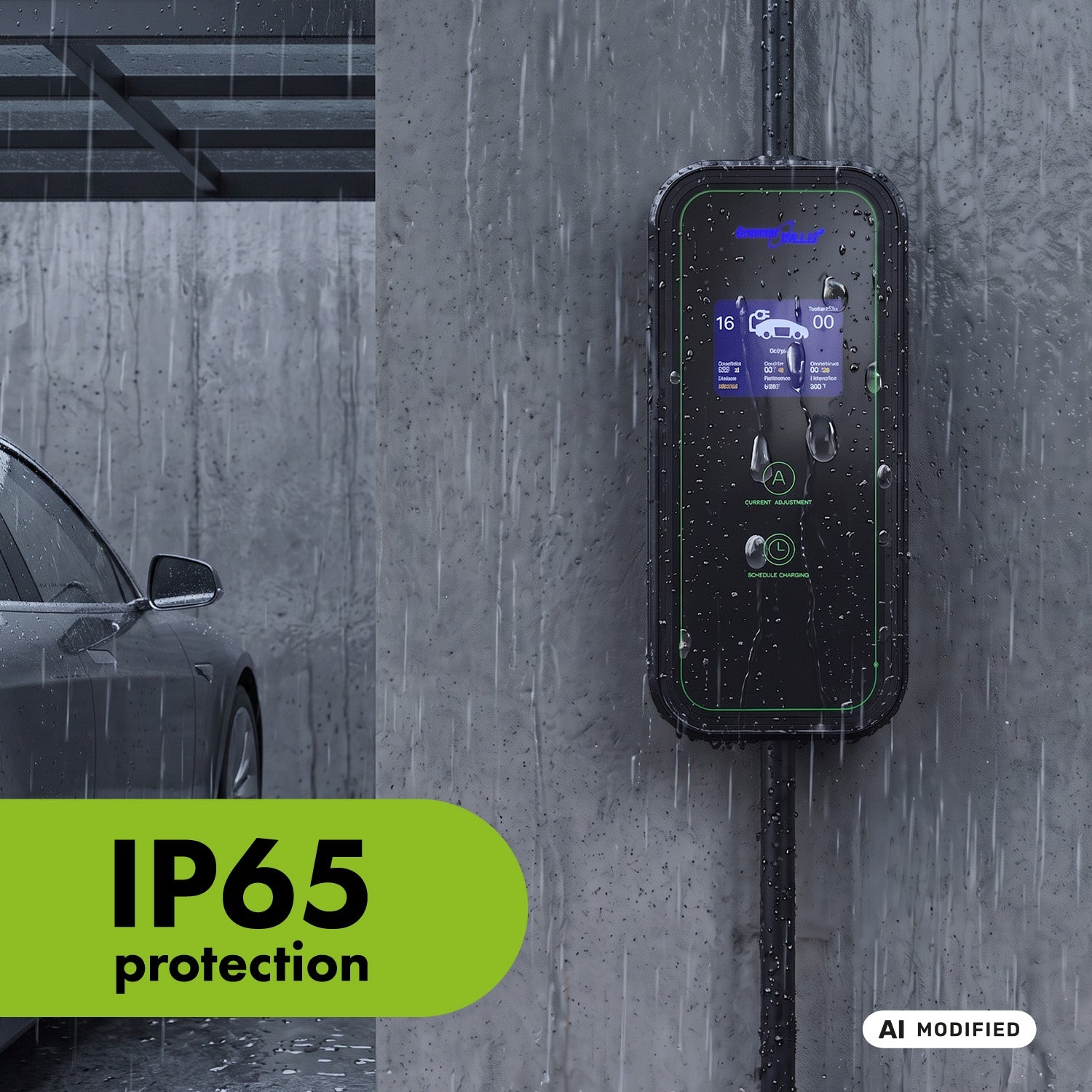

The GB1100 charger is designed with safety and durability in mind, as confirmed by the rigorous European standards IEC 61851, IEC 62196, and IEC 62752. The reinforced housing, made of high-quality PC plastic, offers exceptional resistance to mechanical damage, and the high IP65 protection rating ensures dustproofing and protection against water jets, allowing for safe outdoor use of the charger even in harsh weather conditions. A key safety feature is the advanced real-time temperature monitoring system. If a dangerous temperature rise above 85°C is detected, the device immediately and automatically reduces the current to a safe level of 10 A, protecting the vehicle’s electrical system and battery from overheating. Once the temperature returns to normal, the GB1100 automatically resumes charging with the originally set parameters, ensuring a stable, maintenance-free, and safe charging process every night and on every trip.
- Portable charger for electric vehicles (EV) and plug-in hybrids (PHEV)
- Maximum charging power of up to 11 kW with three-phase power supply
- Compatible with both single-phase 220 V AC and three-phase 380 V AC power systems

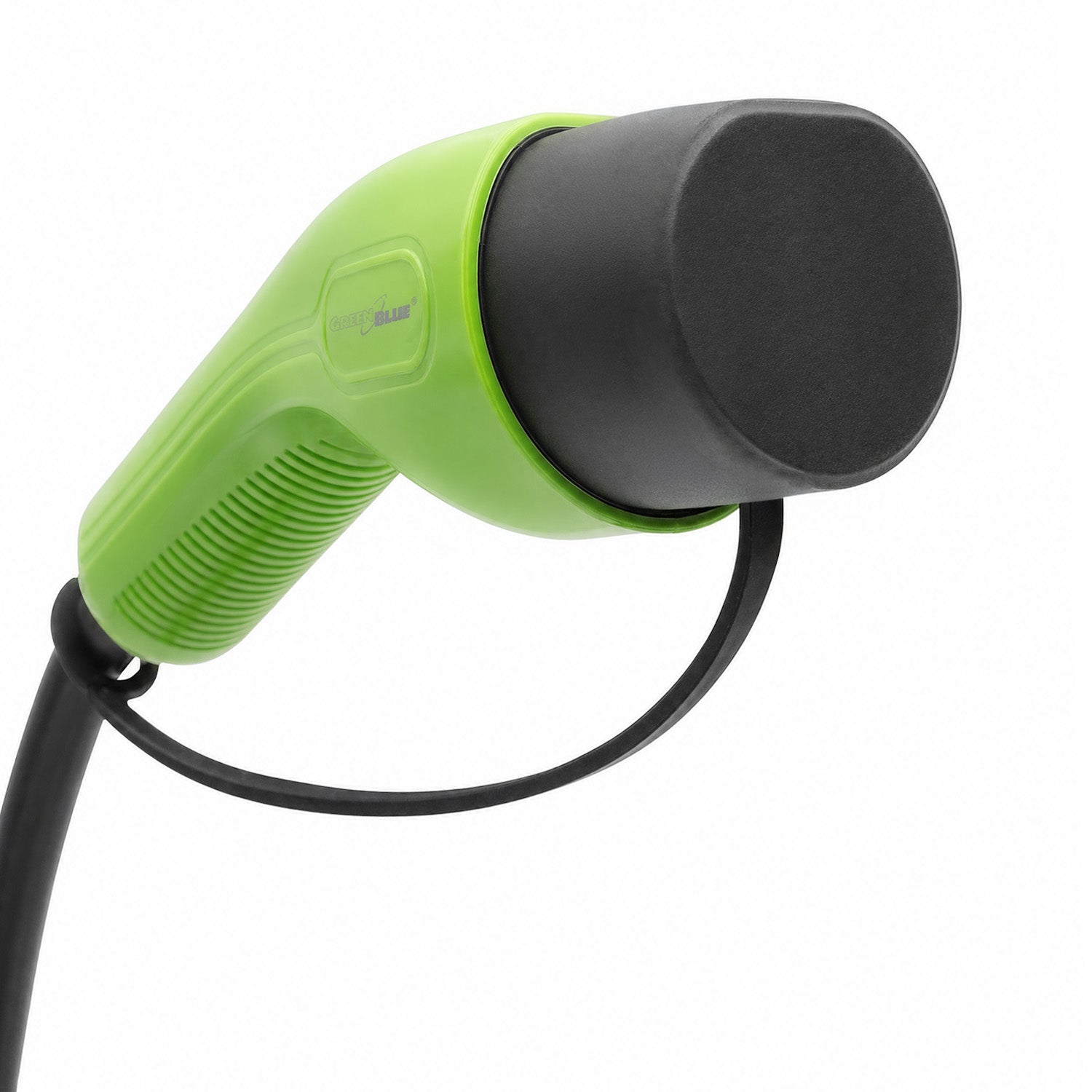

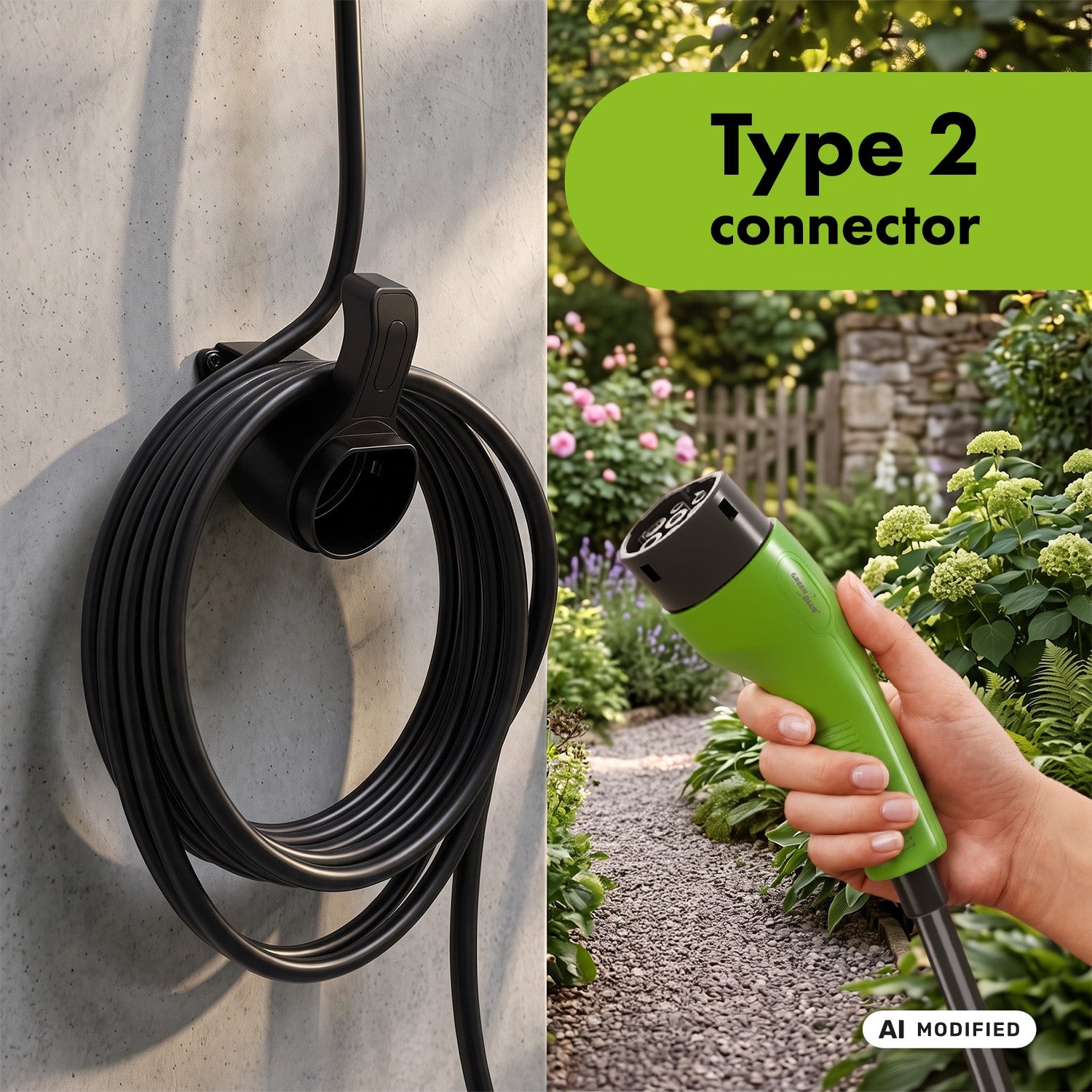

- Type 2 connector, compatible with most electric vehicles and plug-in hybrids available on the European market
- Adjustable charging current from 6 to 16 A, allowing you to tailor operating parameters to the capabilities of your electrical installation and vehicle
- Wi-Fi module enabling remote control and monitoring of the charging process
- Compatible with the Tuya and Smart Life apps, which allow you to start and stop charging, adjust the current, and view charging history
- Timer function, allowing you to schedule charging for a specific time, such as during hours when electricity rates are lower
- Ability to set the target amount of energy to be drawn by the car in the Tuya Smart app, which makes it easier to use energy stored in the energy storage system and helps reserve some of it for other needs
- Easy-to-read LCD display showing key information about the device’s operation and charging
- Total length of 680 centimeters, ensuring a convenient reach when connecting the car
- Sturdy housing made of durable PC plastic
- IP65 protection rating, ensuring resistance to dust and water jets
- Practical carrying case included, making it easy to store and transport the charger
- Compliant with IEC 62196-1/2, IEC 62752, and IEC 61851 standards
- Suitable for use at home, in the garage, at work, on your property, and while traveling
