EverActive UC 4000 is a new, professional quality in universal chargers with simultaneous use of Ni-MH and Li-ion batteries. Our proposal has very precise charging programs perfectly suited for each type of battery.
Li-ion and LiFePO4 batteries are charged very accurately using the CC / CV method with a termination of approx. 75 mA. This ensures full safety and full recharge of any battery, even heavily degraded or low capacity.
Ni-MH batteries are charged with the CC (constant current) method with very precise dV / PVD detection - charging is finished only after reaching the maximum voltage on the battery (the value of this voltage may be different for each battery).
The UC4000 charger is focused on the maximum comfort of use - the charger is extremely user-friendly and easy to use.
An extraordinary compromise was achieved - in the charger we find "only" 2 basic function keys and 2 operating modes. Well-thought-out work modes mean that despite these apparent limitations, the charger has virtually the same or even greater capabilities as models offering 4 separate modes of operation.
The most important features:
- Two basic modes of operation - charging (charge), discharge with refresh (discharge),
- In the discharging mode, the battery is first discharged and then automatically loaded to the full - the loader remembers independently the parameters and results of work for each process,
- Support for all popular cylindrical cells - also so-called FLAT TOP - with a flat plus,
- 0.00V battery reanimation function - the charger can revive almost any battery,
- Microprocessor controlled intelligent, precise CC / CV charging process for Li-ion / Li-FePO4 and CC with dV / PVD for Ni-MH,
- Support for protected (from PCB) as well as unsecured cells, also flat flat top,
- Adjustable charging current for lithium cells: 0.5A or 1A for each slot, for Ni-MH the charging current is 0.5A for each slot,
- Four independent charging channels with the possibility of charging individual batteries and atypical, odd combinations,
- USB 5V / 1A output for charging mobile devices - USB network charger function (not Power Bank),
- Capacity Review - 300 mA discharge with measurement function and capacity review [mAh] - a unique feature that allows you to review two capacities [mAh] for each battery from both discharging and charging - it allows you to evaluate not only the battery capacity, but also lets you judge if the battery has been properly charged,
- Security set: before overloading, against excessive discharging of cells, short circuit, overload, thermal, against reverse polarity of cells.
- Producer: everActive
- Charger model: UC-4000
- Supported battery types: 1-4x Li-ion 3.6 - 3.7V batteries, protected (with PCM / PCB) and unprotected, LiFePO4, Ni-MH
- Supported battery sizes: R6 AA, R03 AAA, R14 C, R20 D, 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700, 22650, 25500, 26500, 26650, 32650, 33600, 16340 R-CR123
- Input voltage: 12V DC, 2.5A max and 100-240V AC - integrated power supply, cable included
- Maximum battery dimensions: height: 71mm, width: 33mm
- Charging method: processor-controlled CC / CV for Li-ion / Li-FePO4, CC with dV / PVD for Ni-MH
charging current in CC phase: adjustable - 0.5A / 1A per channel / slot for Li-ion / Li-FePO4, 0.5A per channel / slot for Ni-MH
- Charging end voltage: Li-ion 4.2V ± 0.05V; Li-FePO 4 3.65V ± 0.05V; Ni-MH ~ 1.45V-1.55V dV / PVD
- Terminating current for lithium cells: ~ 75mA
- Discharge current: 300mA per channel / slot
- Additional functions: capacity review - extended measurement of battery capacity; USB 5V DC output, 1A - USB charger function (requires connection of the charger to the power supply)
- Security: before overloading; against excessive discharge of cells; short-circuit; overload; thermal; against the reverse polarity of cells
- Dimensions: 162 x 98 x 42mm
- Loader weight - 323g
- The product has the CE mark

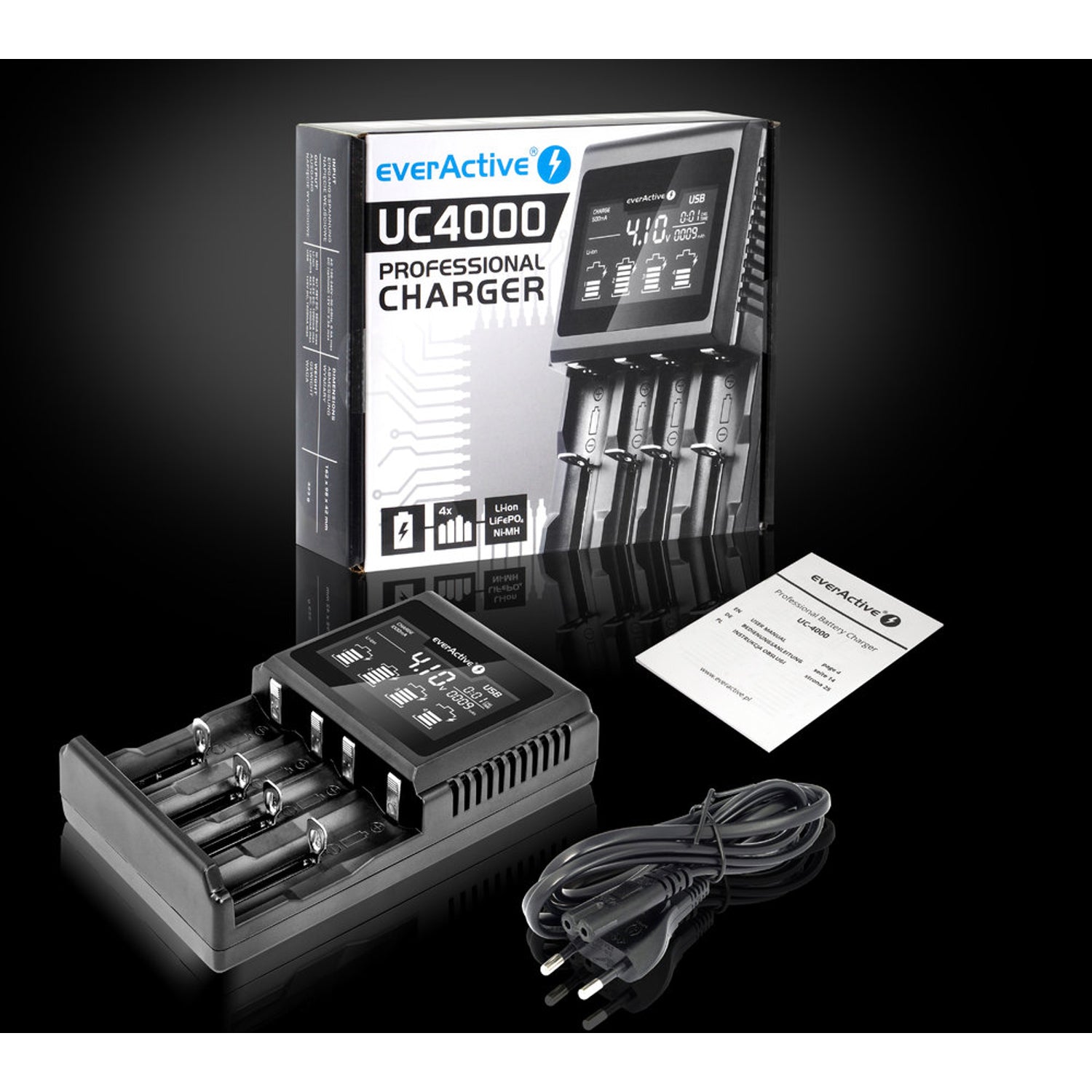

- EverActive UC 4000 charger
- 1m power cable,
- User manual
- Manufacturer's packaging
- A proof of purchase

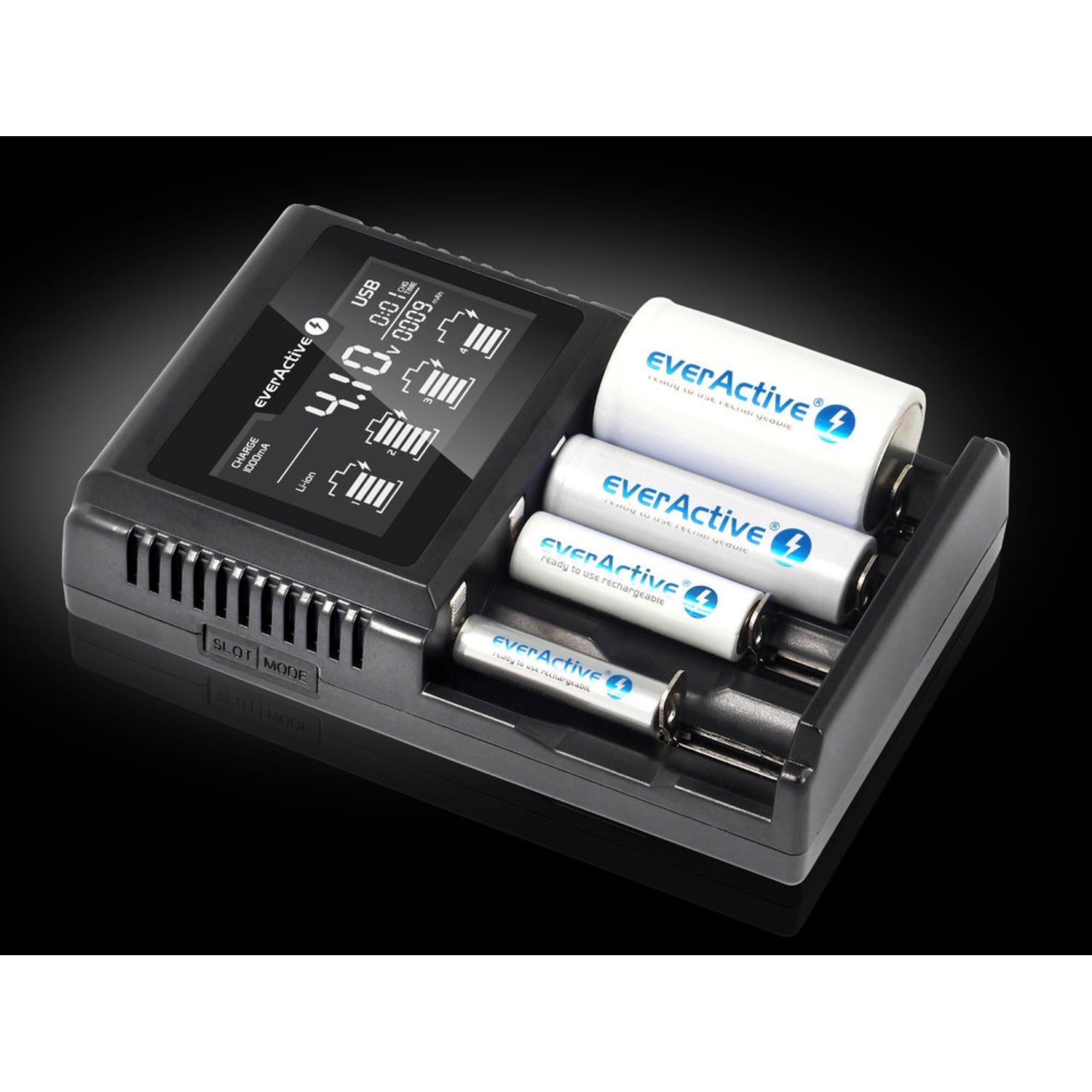

The charger allows charging and testing 1-4 pcs of lithium-ion, lithium-iron-phosphate and nickel-hydride batteries in various sizes:
R6 AA, R03 AAA, R14 C (max. 2 pcs), R20 D (max. 2 pcs), 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700, 22650, 25500 ( max. 2 pcs), 26500 (max 2), 26650 (max 2), 32650 (max 2), 33600 (max 2), 16340 R-CR123e.
The loader will handle any other cylindrical battery with a length of 32-71 mm and a maximum diameter of 33 mm.

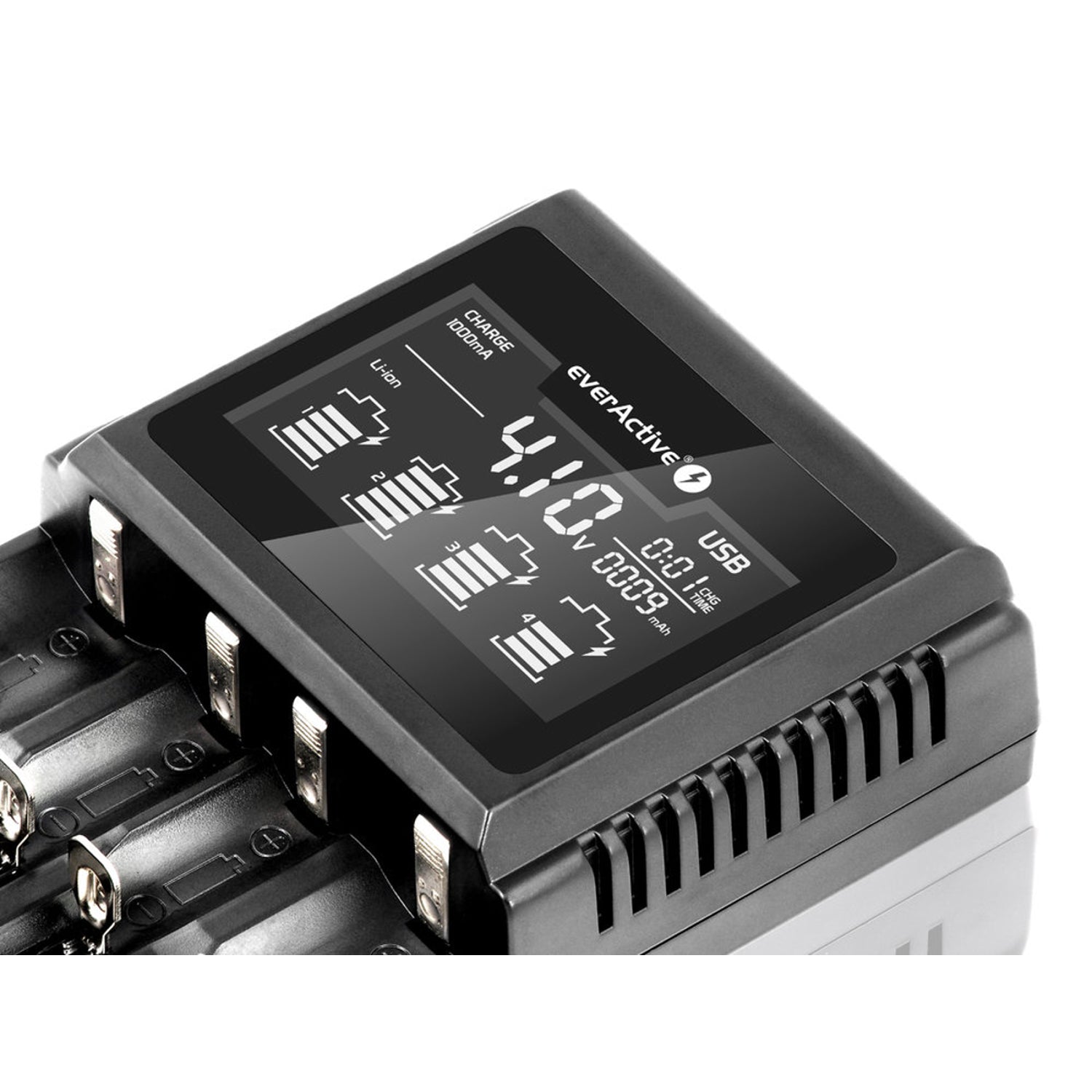

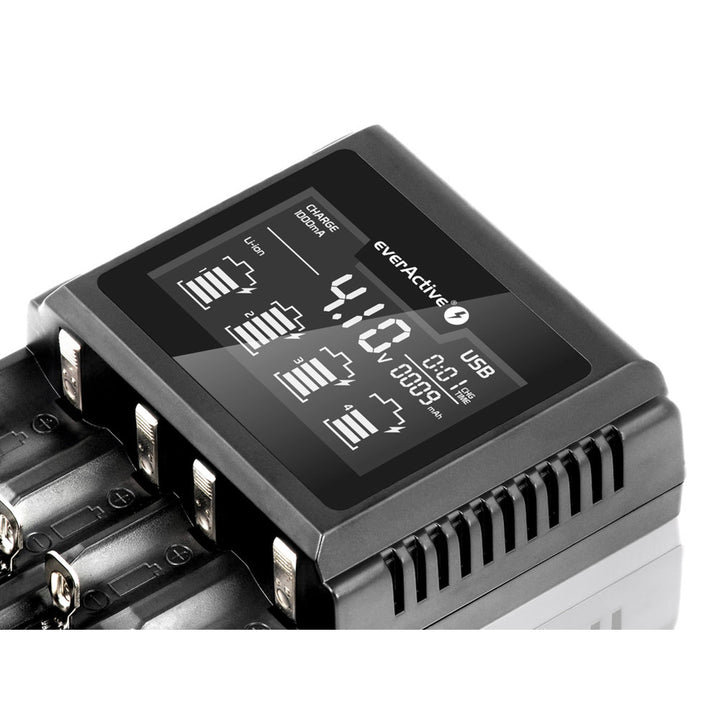

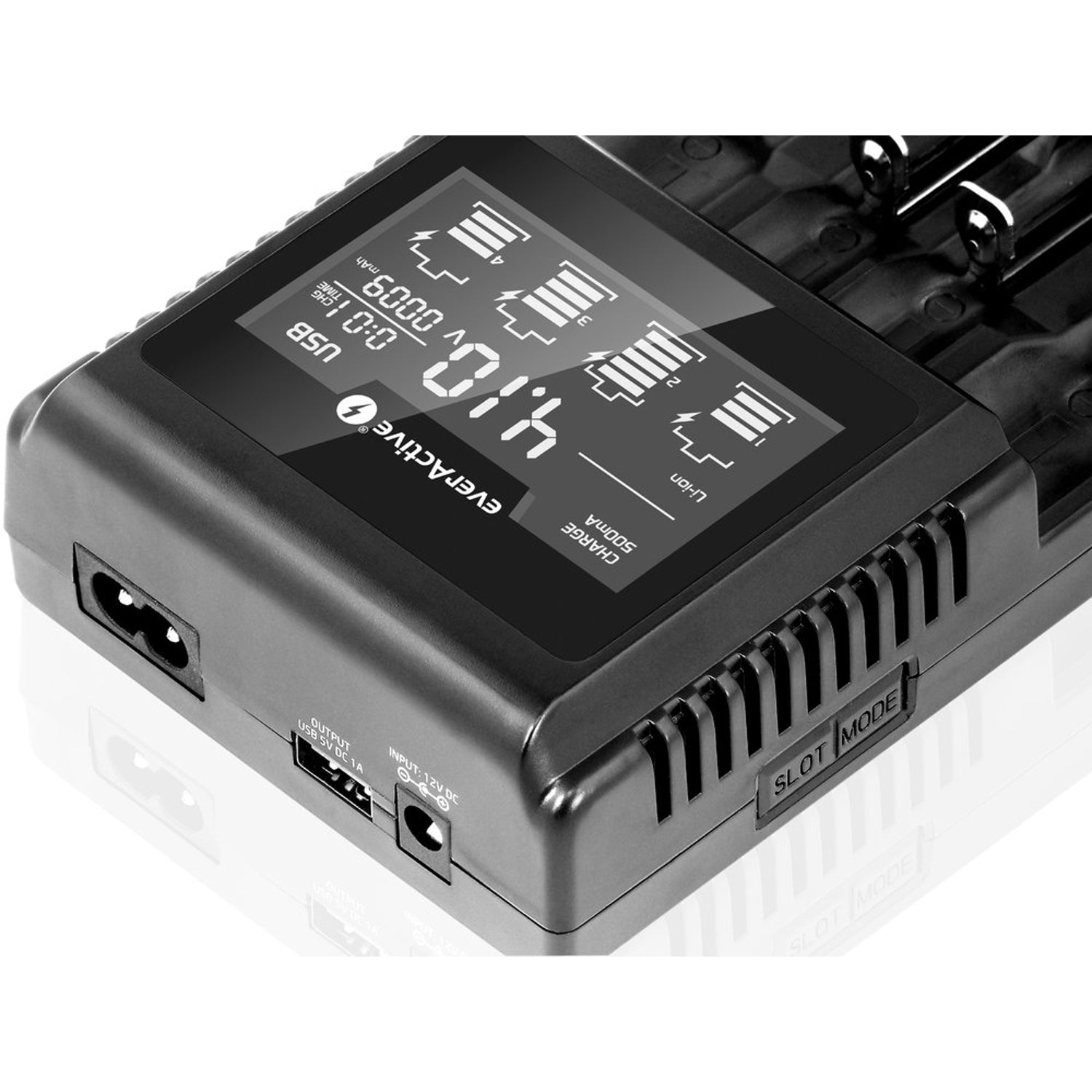

All operating parameters can be viewed on an extremely legible, large, backlit LCD display.

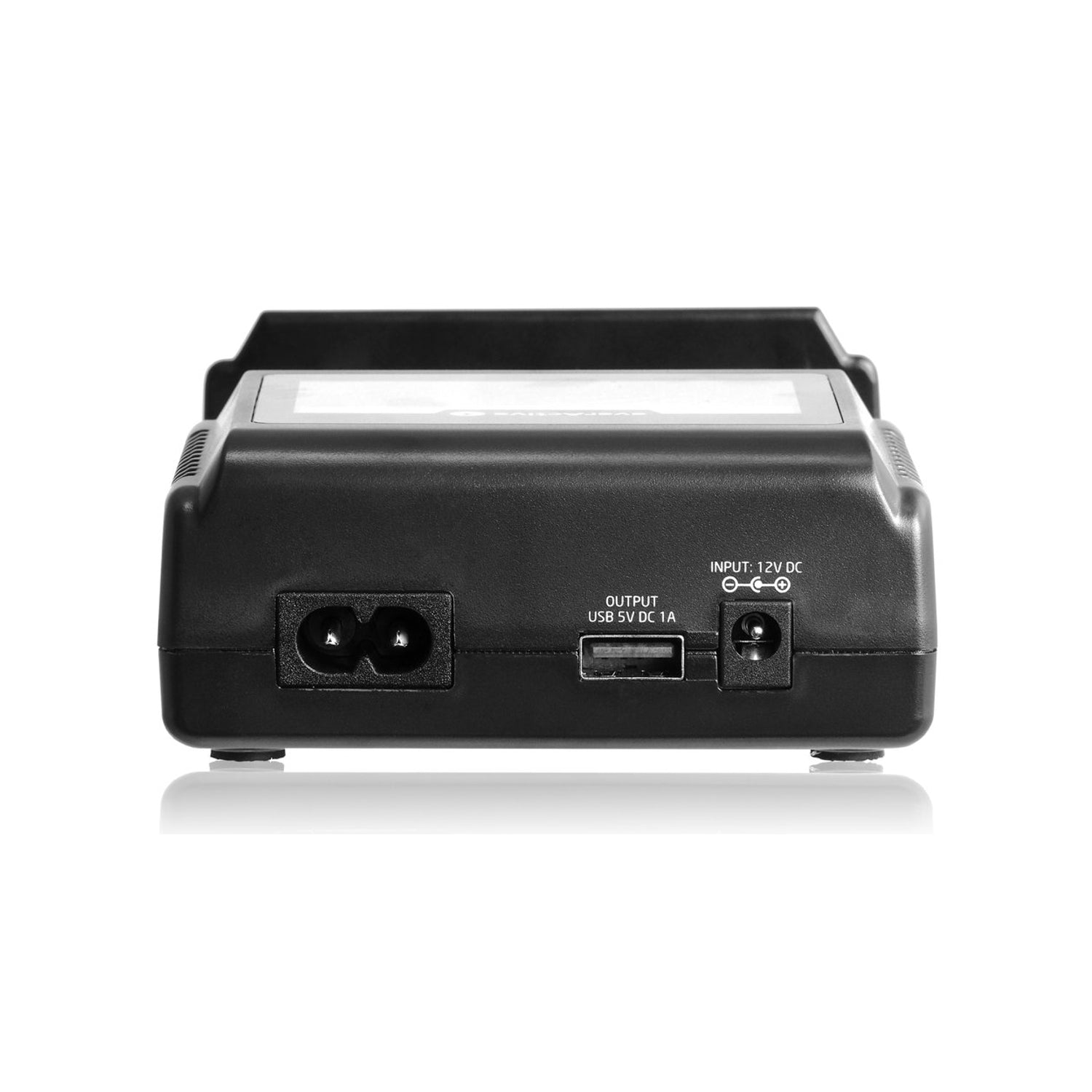

The charger has a double input voltage: 12V DC and 100-240V AC - the charger has an integrated mains power supply - includes a power cable, car adapter available separately.
- Two basic modes of operation - charging (charge), discharge with refresh (discharge)
- In the discharging mode, the battery is first discharged and then automatically charged to full
- 0.00V battery reanimation function - the charger can revive almost any battery
- Support for secured (PCB) as well as unsecured cells, also with a flat plus
- Four independent charging channels with the possibility of charging individual batteries and atypical, odd combinations
- Security set: before overloading, against excessive discharge of cells, short circuit, overload, thermal, against reverse polarity of cells
