LiFePO4 (lithium-iron-phosphate) batteries with integrated BMS are mainly characterized by very low weight and a high number of duty cycles - a life of about 6000 cycles at DoD 60%. Thanks to its high cyclic rate and very low self-discharge, the LiFePO4 battery is ideal, both in emergency power systems and in operation in OFF-GRID installations.
Low weight allows the device to be used in vehicles such as campers, foodtrucks and boats, among others. The built-in BMS ensures that the battery is stored without losing its nominal capacity for a long time and controls the charging and discharging processes of the battery.

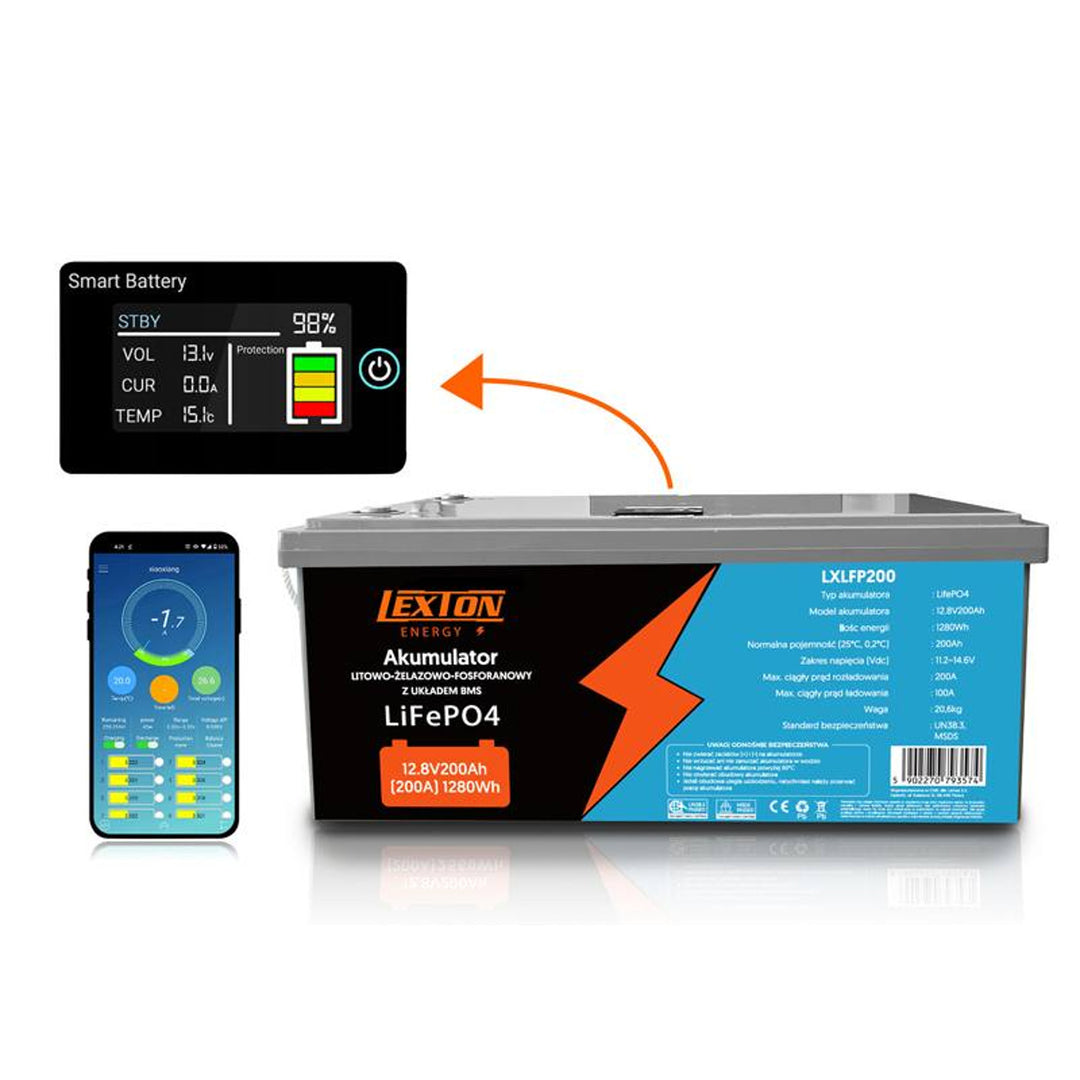

The battery is equipped with a built-in Bluetooth module, which allows you to connect to your phone. Thanks to the app, you can check the battery's parameters, including charging status, capacity to be used, current charging/discharging current, current voltage, discharge capacity.

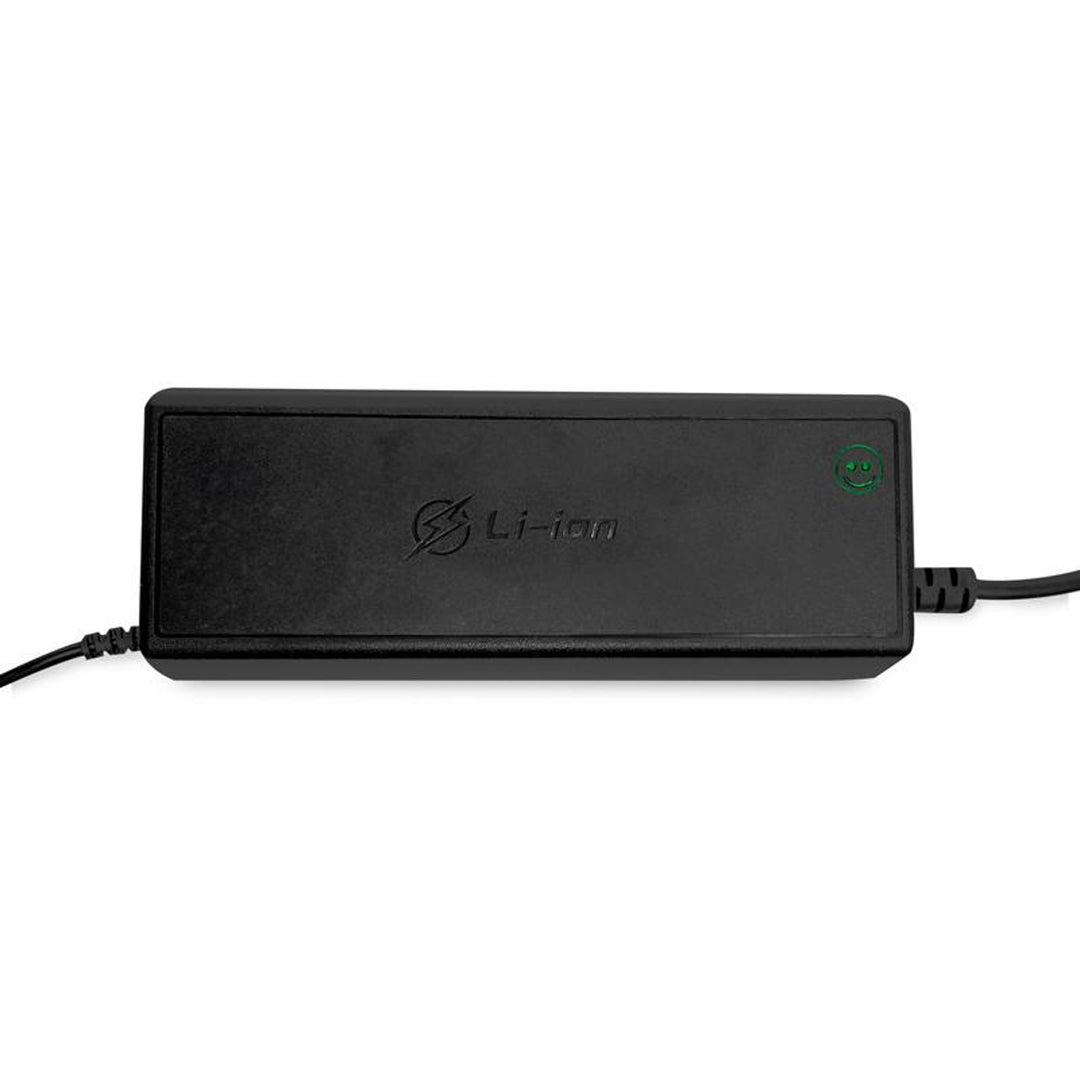

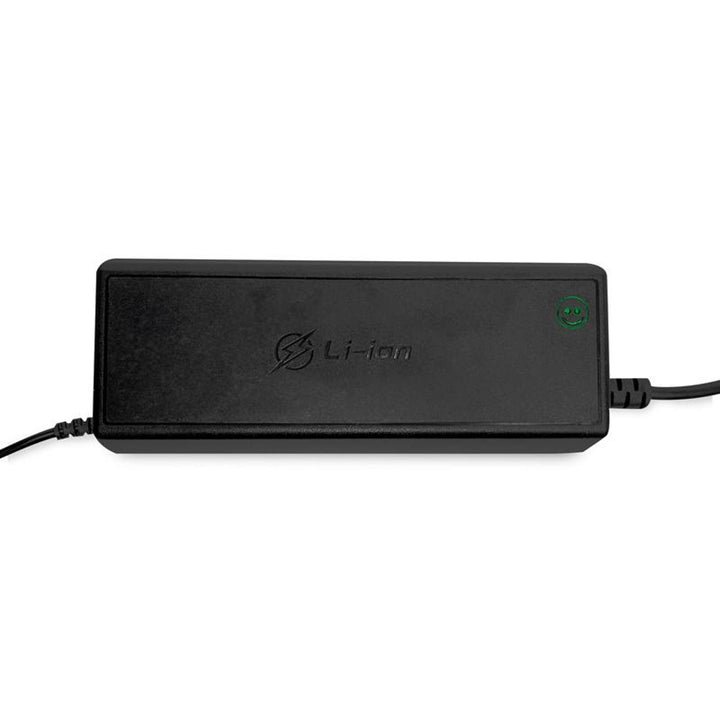

The battery pack comes with a LiFePO4 battery charger. This powerful device is designed to safely and quickly charge modern lithium-iron-phosphate batteries. It offers a charging current of 20A, which allows efficient replenishment of energy even in larger batteries, while maintaining optimal performance.
The charger is equipped with a number of protections - overvoltage, overcurrent, short-circuit and reverse polarity protection - thus minimizing the risk of damage to the battery and the device itself. Robust design and intuitive operation make the charger suitable for both workshops and home use, ensuring long and trouble-free operation of LiFePO4 batteries.
Battery:
- Battery type: LifePO4
- Battery model: 12.8V 200Ah
- Energy amount: 1280Wh
- Normal capacity (25°C, 0.2°C): 200Ah
- Voltage range (Vdc): 11.2~14.6V
- Max. continuous discharge current: 200A
- Max continuous charging current: 100A
- Weight: 20.6kg
- Safety standard: UN38.3, MSDS
- Dimensions (W x H x D): 495 x 220 x 245mm
- Rectifier:
- Brand: LTC Energy
- Model: LXPOE20
- Input voltage: 180-240V AC
- Input power: 300W
- Output voltage: 14.6V
- Output current: 20.0A
- LiFePo4 Lexton LXLFP200 lithium-iron-phosphate battery
- LTC Energy LXPOE20 LiFePO4 battery charger
- Instructions
NOTE:
When using the LIFEPO4 battery to power a device with an electric motor, including propeller motors, it is mandatory to use a DC fuse on the (+) circuit of the battery, with a value not greater than the maximum load current indicated on the housing.
The load of the battery with a starting current that can be from 5 to 10 times higher than the nominal operating current of electric motors, outboards, built-in motors, compressors, refrigerators, air conditioners and other motor equipment can cause permanent damage to the LIFEPO4 battery with BMS.
For starting outboard motors with an electric starter, it is recommended to use AGM batteries. This is because in LiFePO4 batteries the maximum current is limited by the BMS to 100 or 150A, and this is not enough for electric starters.
Maximum charging voltage is 14.6V. After a long stop (such as after winter), do not charge with high current. The manufacturer recommends charging with a maximum current of 10A. Check what maximum charging voltage your charger offers so that it does not exceed 14.6V, as this risks damaging the battery. These types of batteries can be fully charged at 14V already, but the process will be slower.
- LiFePO4 type battery with built-in BMS
- Great for both emergency power systems and OFF-GRID operation
- Low weight allows to use the device in installations in vehicles (campers, foodtrucks) and boats
- Built-in BMS ensures battery storage without loss of nominal capacity for a long time
- Bluetooth module allows you to connect to your phone. Thanks to the app, you can check the battery parameters including state of charge, capacity to use, current charge/discharge current, current voltage, discharge capacity
- Overvoltage and overload protection
- Capacity: 200Ah
- The battery comes with a charger designed to charge LiFePO4 batteries
Low weight allows the device to be used in vehicles such as campers, foodtrucks and boats, among others. The built-in BMS ensures that the battery is stored without losing its nominal capacity for a long time and controls the charging and discharging processes of the battery.
The battery is equipped with a built-in Bluetooth module, which allows you to connect to your phone. Thanks to the app, you can check the battery's parameters, including charging status, capacity to be used, current charging/discharging current, current voltage, discharge capacity.
The battery pack comes with a LiFePO4 battery charger. This powerful device is designed to safely and quickly charge modern lithium-iron-phosphate batteries. It offers a charging current of 20A, which allows efficient replenishment of energy even in larger batteries, while maintaining optimal performance.
The charger is equipped with a number of protections - overvoltage, overcurrent, short-circuit and reverse polarity protection - thus minimizing the risk of damage to the battery and the device itself. Robust design and intuitive operation make the charger suitable for both workshops and home use, ensuring long and trouble-free operation of LiFePO4 batteries.
Battery:
- Battery type: LifePO4
- Battery model: 12.8V 200Ah
- Energy amount: 1280Wh
- Normal capacity (25°C, 0.2°C): 200Ah
- Voltage range (Vdc): 11.2~14.6V
- Max. continuous discharge current: 200A
- Max continuous charging current: 100A
- Weight: 20.6kg
- Safety standard: UN38.3, MSDS
- Dimensions (W x H x D): 495 x 220 x 245mm
- Rectifier:
- Brand: LTC Energy
- Model: LXPOE20
- Input voltage: 180-240V AC
- Input power: 300W
- Output voltage: 14.6V
- Output current: 20.0A
- LiFePo4 Lexton LXLFP200 lithium-iron-phosphate battery
- LTC Energy LXPOE20 LiFePO4 battery charger
- Instructions
NOTE:
When using the LIFEPO4 battery to power a device with an electric motor, including propeller motors, it is mandatory to use a DC fuse on the (+) circuit of the battery, with a value not greater than the maximum load current indicated on the housing.
The load of the battery with a starting current that can be from 5 to 10 times higher than the nominal operating current of electric motors, outboards, built-in motors, compressors, refrigerators, air conditioners and other motor equipment can cause permanent damage to the LIFEPO4 battery with BMS.
For starting outboard motors with an electric starter, it is recommended to use AGM batteries. This is because in LiFePO4 batteries the maximum current is limited by the BMS to 100 or 150A, and this is not enough for electric starters.
Maximum charging voltage is 14.6V. After a long stop (such as after winter), do not charge with high current. The manufacturer recommends charging with a maximum current of 10A. Check what maximum charging voltage your charger offers so that it does not exceed 14.6V, as this risks damaging the battery. These types of batteries can be fully charged at 14V already, but the process will be slower.
- LiFePO4 type battery with built-in BMS
- Great for both emergency power systems and OFF-GRID operation
- Low weight allows to use the device in installations in vehicles (campers, foodtrucks) and boats
- Built-in BMS ensures battery storage without loss of nominal capacity for a long time
- Bluetooth module allows you to connect to your phone. Thanks to the app, you can check the battery parameters including state of charge, capacity to use, current charge/discharge current, current voltage, discharge capacity
- Overvoltage and overload protection
- Capacity: 200Ah
- The battery comes with a charger designed to charge LiFePO4 batteries
