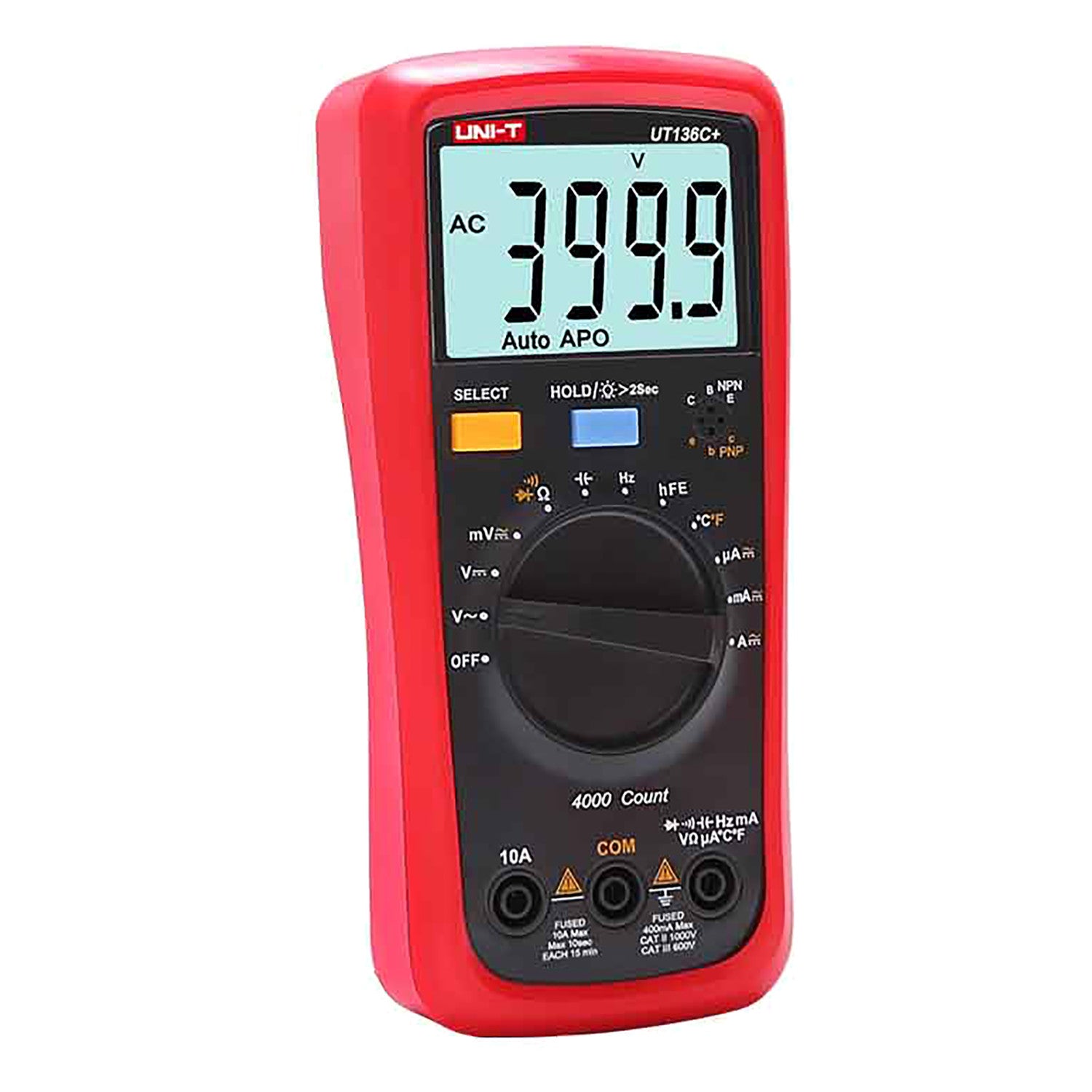

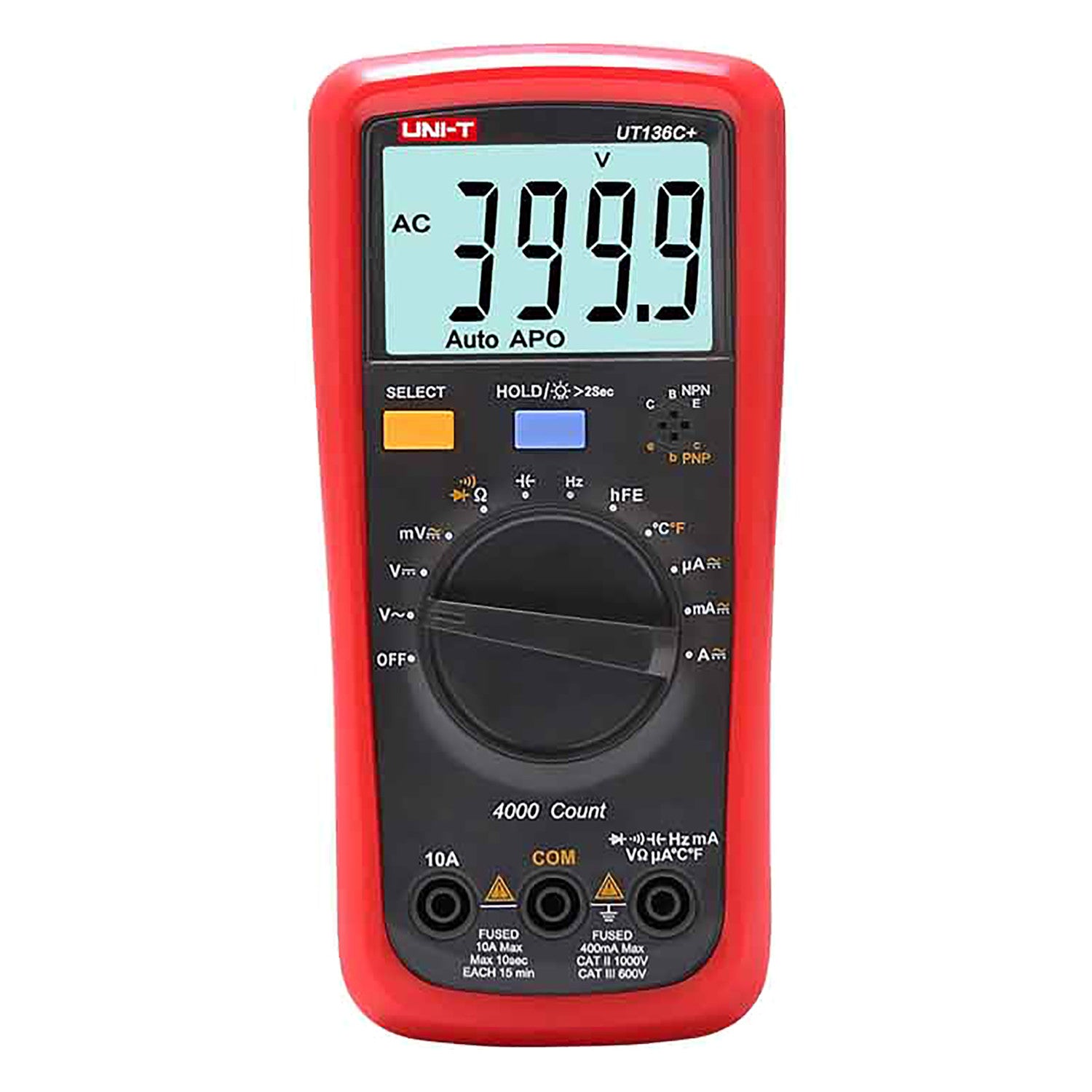

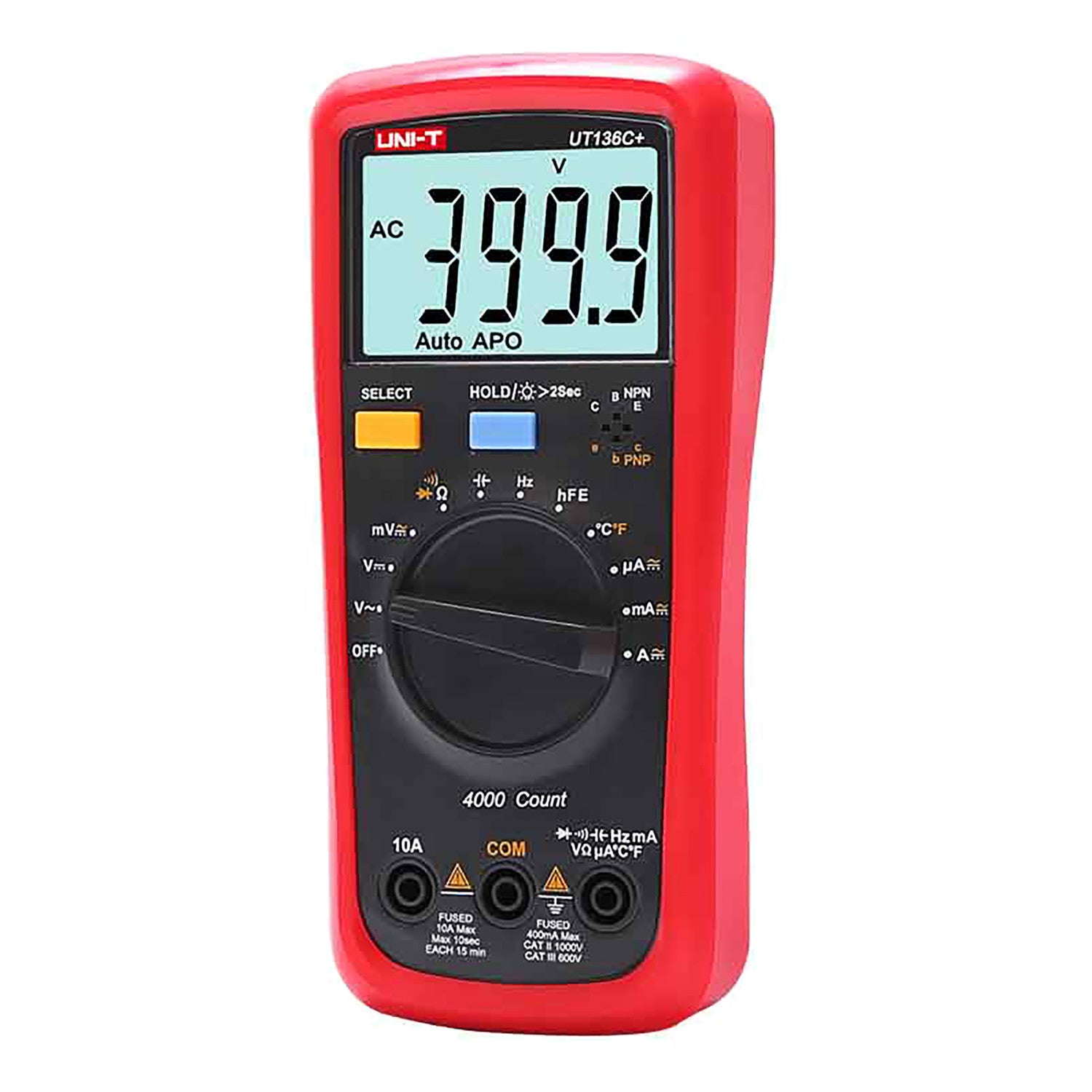

The UT136C+ universal meter is a modern measuring device, ideal for a wide range of applications. Thanks to its advanced functions and high precision, the UT136C+ will prove useful for both professional and amateur diagnostic work.
WIDE MEASURING CAPACITIES
UT136C+ can measure direct current (DC) and alternating current (AC) voltages up to 1000 V, allowing it to work with different types of electrical installations. The device also offers current measurement up to 10 A and resistance up to 40 MOhm, making it a versatile diagnostic tool. In addition, the meter can measure temperature over a wide range from -40°C to 1000°C and from -40°F to 1832°F, adding to its functionality. The functions of diode test, circuit continuity check and hFE ratio measurement of transistors complete the rich set of capabilities.
AUTOMATIZATION AND USE EFFICIENCY
UT136C+ has been equipped with automatic range changing functions, which makes operation easier and faster. The function of freezing the last reading allows you to read the results accurately, and the low battery indicator and automatic shutdown take care of longer life of the device. The 56.5 x 36 mm backlit display provides excellent readability, even in low-light conditions.COMPACT AND SOLID DESIGN

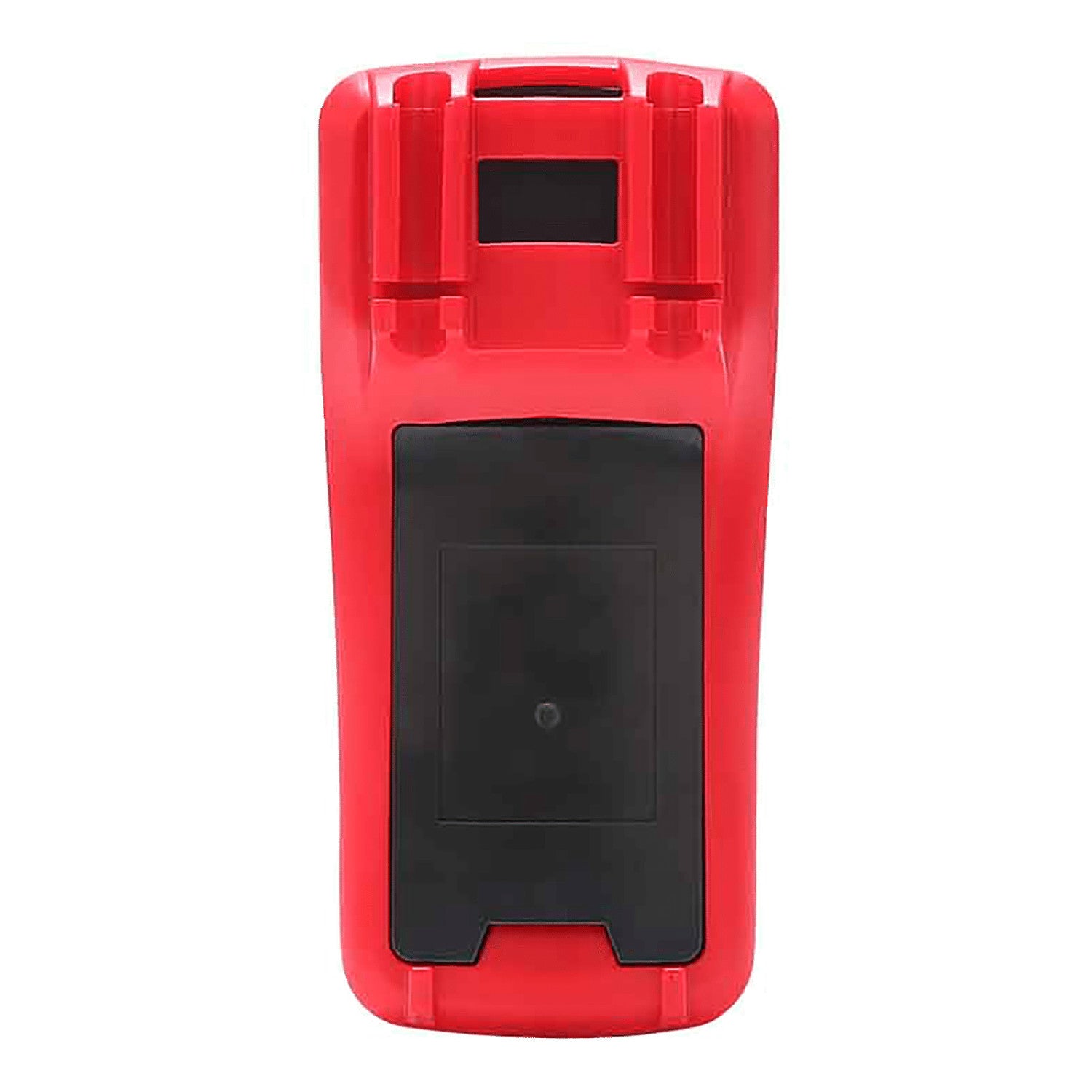

UT136C+ is a meter with a sturdy design and compact dimensions (175 x 83 x 53 mm) for convenient use and durability. Necessary accessories such as test leads, temperature probe and batteries are included, making the meter ready to use right out of the box.
- DC voltage: 1000 V ±(0.7%+3)
- AC voltage: 1000 V ±(1%+3)
- DC current: 10 A ±(1%+3)
- AC current: 10 A ±(1.2%+5)
- Resistance: 40 MOhm ±(0.8%+2)
- Temperature: -40°C~1000°C ±(0.1%+4)
- Uni-T UT136C+ Digital Universal Meter
- 2x 1.5V batteries (R6)

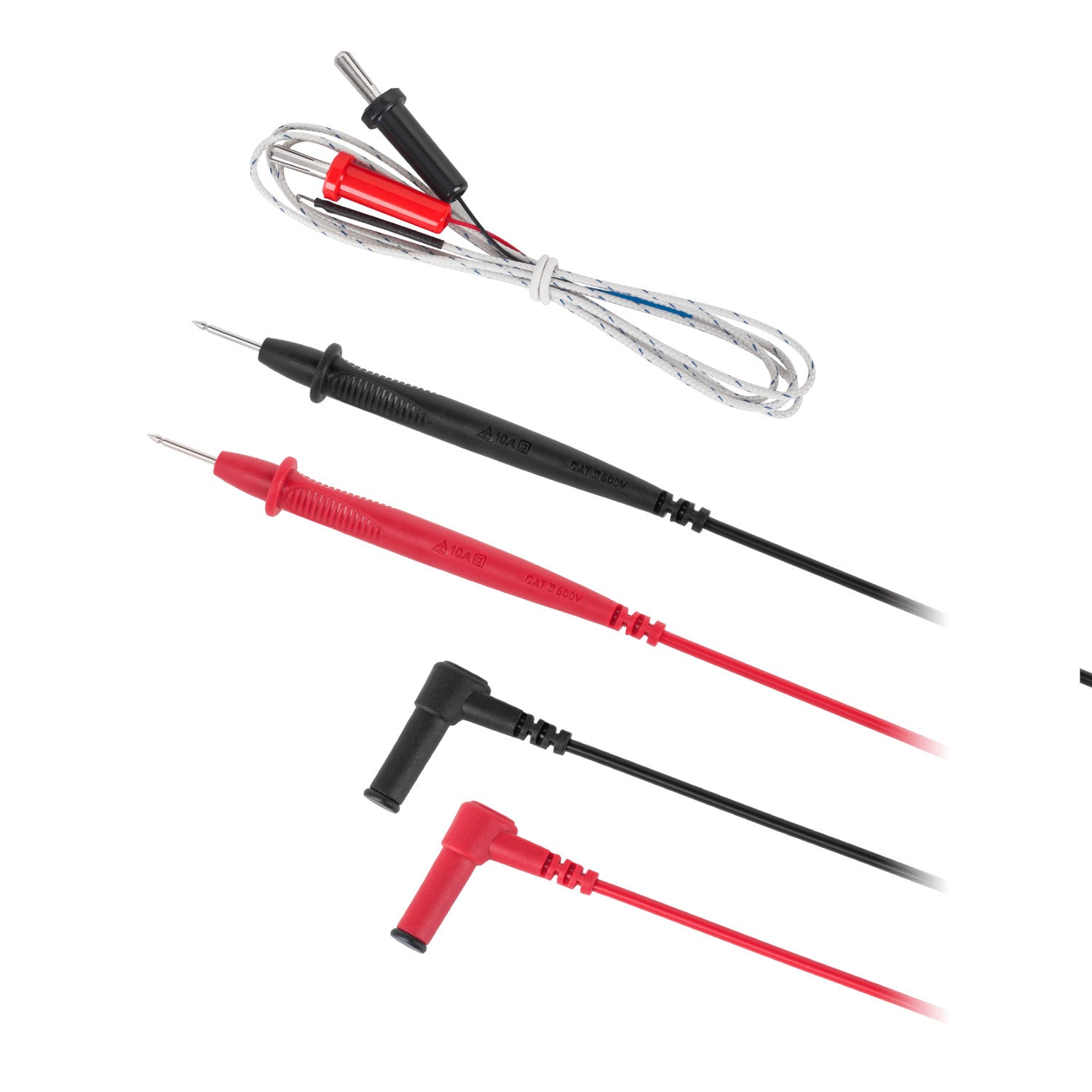

- Test leads
- Temperature measurement probe
- User manual
- Manufacturer's packaging
- DC and AC voltage measurement
- Current measurement up to 10 A
- Temperature measurement from -40°C to 1000°C
- Automatic change of measurement ranges
- Freeze last indication function
- Backlit 56.5 x 36 mm display
- Automatic shut off
